027023
EX20723G2 SNR ROLAMENTO FIXO ESFERAS 36,51X72X51,1 =G1107KRRB
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 10 |
| São Paulo | 23 |
| Total | 33 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

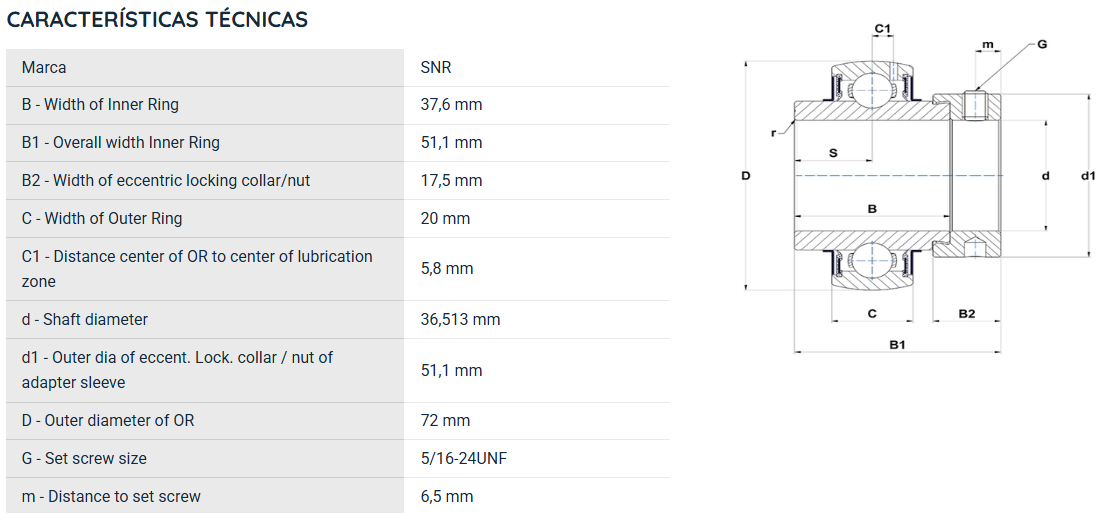

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 37,6 mm
B1 - Overall width Inner Ring = 51,1 mm
B2 - Width of eccentric locking collar/nut = 17,5 mm
C - Width of Outer Ring = 20 mm
C1 - Distance center of OR to center of lubrication zone = 5,8 mm
d - Shaft diameter = 36,513 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 51,1 mm
D - Outer diameter of OR = 72 mm
G - Set screw size = 5/16-24UNF
m - Distance to set screw = 6,5 mm

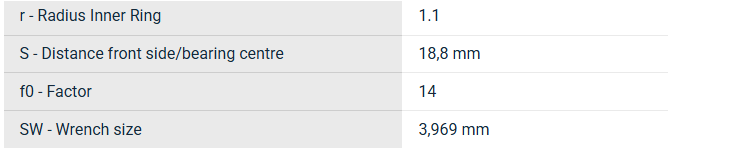

r - Radius Inner Ring = 1.1
S - Distance front side/bearing centre = 18,8 mm
f0 - Factor = 14
SW - Wrench size = 3,969 mm
C - Dynamic load rating = 25,7 kN
C0 - Static load rating = 15,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
