019104

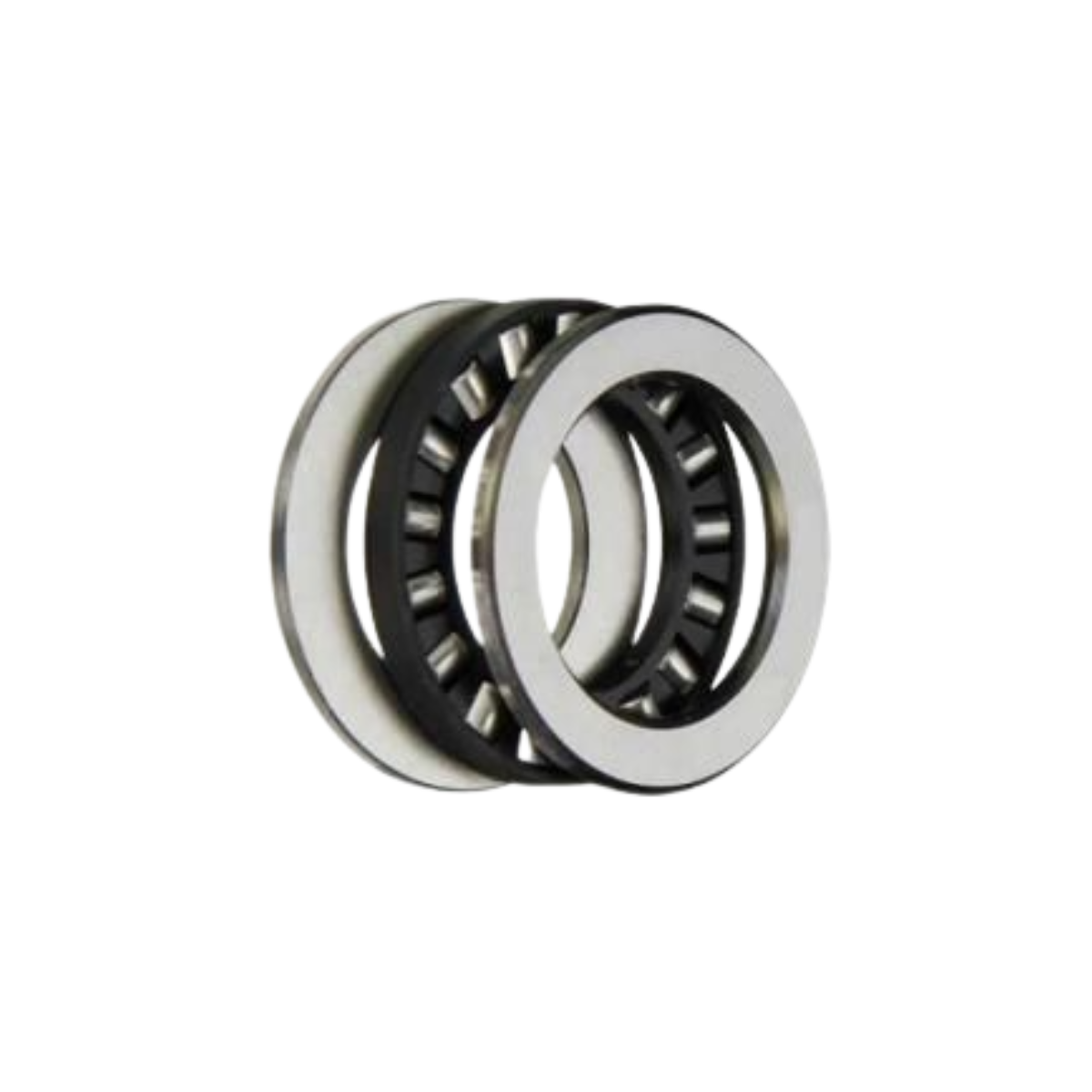

81116 NKR ROLAMENTO INDUSTRIAL AXIAL DE ROLOS CILINDRICOS 80X105X19
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 1 |
| Total | 1 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

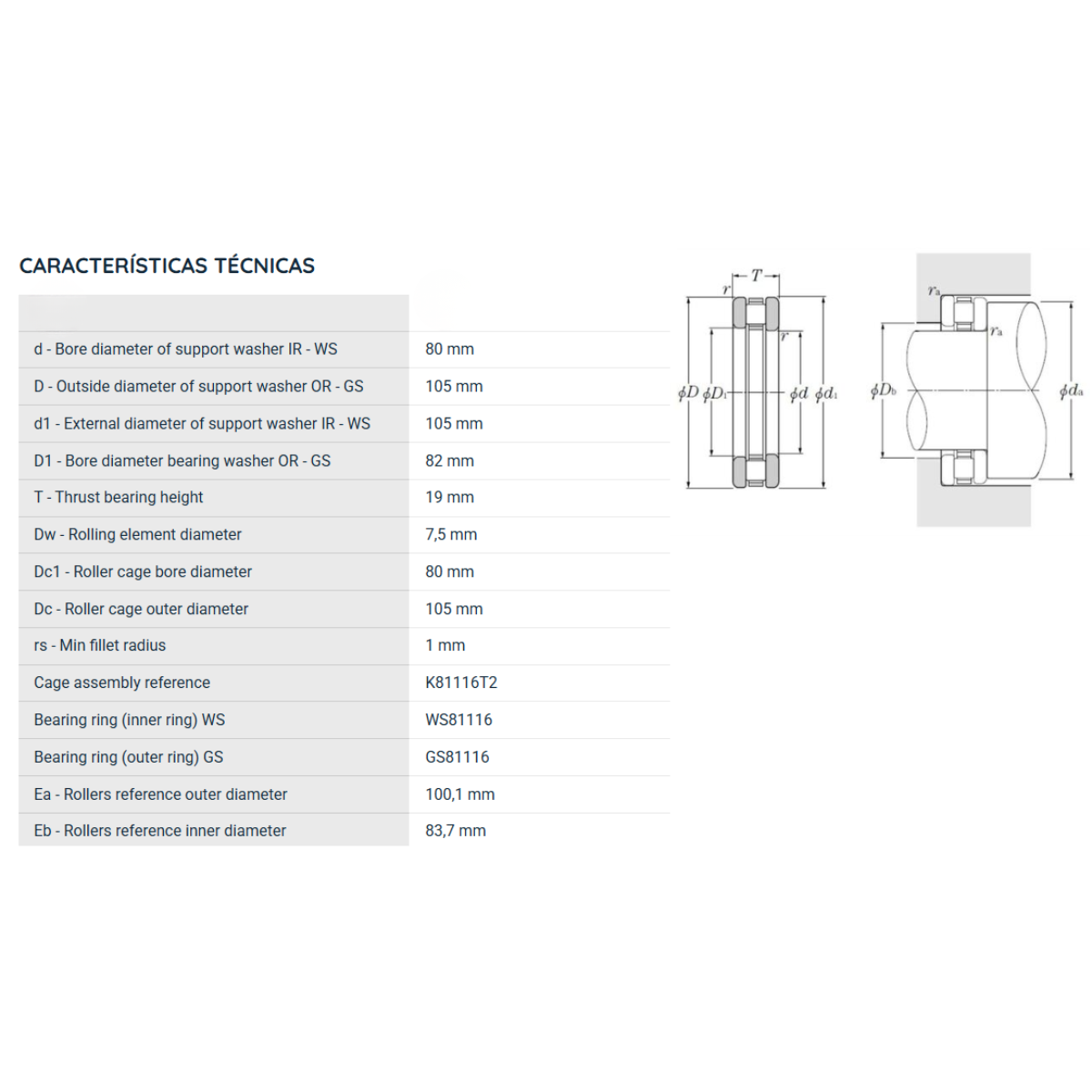

CARACTERÍSTICAS TÉCNICAS
d - Bore diameter of support washer IR - WS = 80 mm
D - Outside diameter of support washer OR - GS = 105 mm
d1 - External diameter of support washer IR - WS = 105 mm
D1 - Bore diameter bearing washer OR - GS = 82 mm
T - Thrust bearing height = 19 mm
Dw - Rolling element diameter = 7,5 mm
Dc1 - Roller cage bore diameter = 80 mm
Dc - Roller cage outer diameter = 105 mm
rs - Min fillet radius = 1 mm
Cage assembly reference = K81116T2
Bearing ring (inner ring) WS WS81116
Bearing ring (outer ring) GS GS81116
Ea - Rollers reference outer diameter = 100,1 mm
Eb - Rollers reference inner diameter = 83,7 mm
Cage assembly mass = 0,119 kg
Bearing ring (inner ring) WS mass = 0,165 kg
Bearing ring (outer ring) GS mass = 0,165 kg
Ca - Dynamic axial load rating = 79,5 kN
C0a - Static axial load rating = 279 kN
Cua - Limit axial load rating = 34 kN
N lim - Grease lubrication limit speed = 650 tr/min
N lim - Oil lubrication limit speed = 2600 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
da min - Min shoulder diameter IR = 100 mm
Db max - Max OR shoulder diameter = 85 mm
ras max - Max shaft & housing fillet radius = 1 mm
