014008

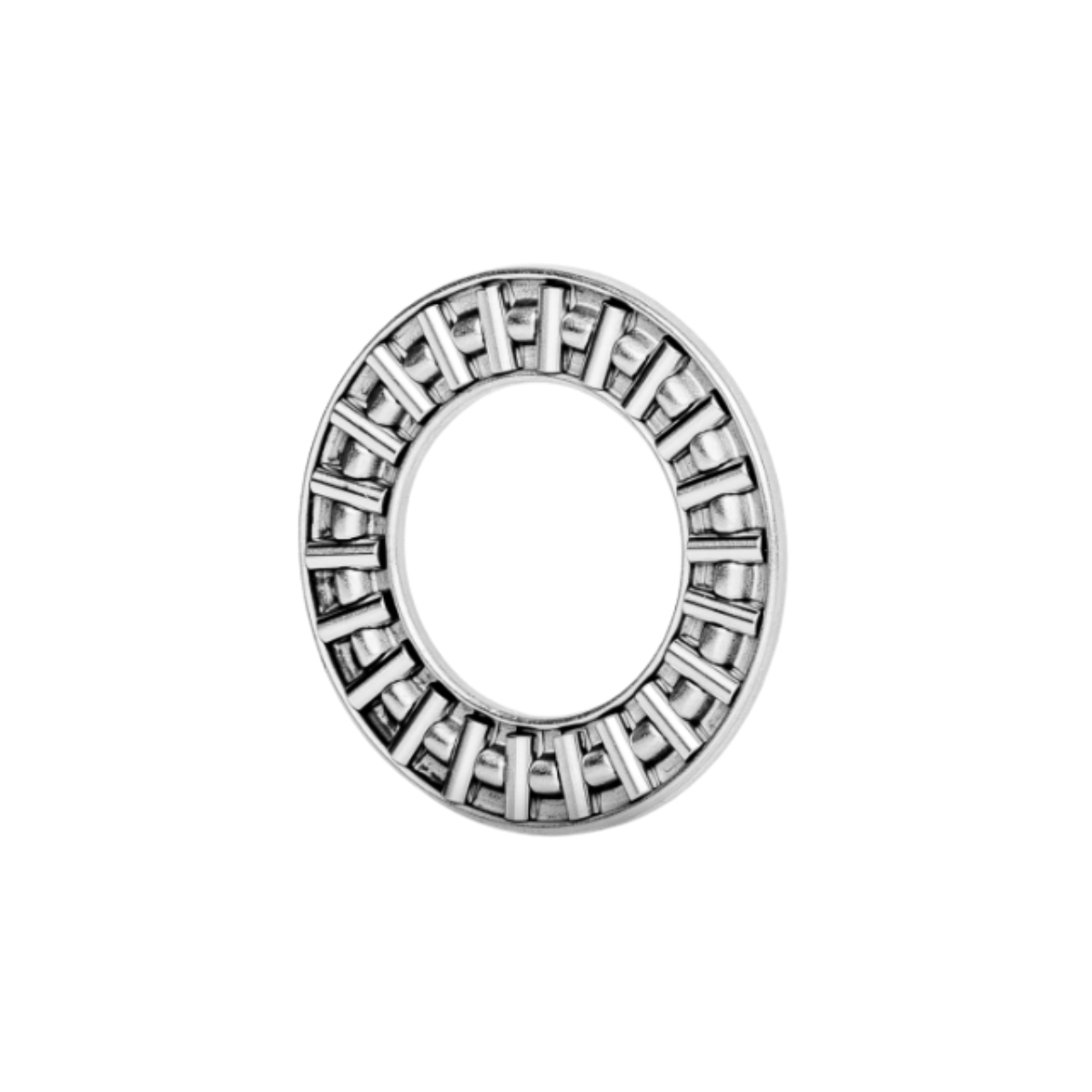

AXK6590 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1113 65X90X3
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 73 |
| Total | 73 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.
CARACTERÍSTICAS TÉCNICAS

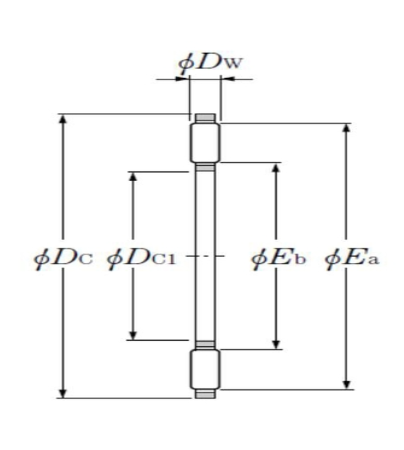

Dc1 - Roller cage bore diameter = 65 mm
Dc - Roller cage outer diameter = 90 mm
Dw - Rolling element diameter = 3 mm
Bearing ring (washer) AS = AS1113
Bearing ring (inner ring) WS = WS81113
Bearing ring (outer ring) GS = GS81113
Ea - Rollers reference outer diameter = 86,9 mm
Eb - Rollers reference inner diameter = 71 mm
Ca - Dynamic axial load rating = 46,5 kN
C0a - Static axial load rating = 254 kN
Cua - Limit axial load rating = 31 kN
N lim - Grease lubrication limit speed = 750 tr/min
N lim - Oil lubrication limit speed = 3000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 65 mm
Dc - Roller cage outer diameter = 90 mm
Dw - Rolling element diameter = 3 mm
Bearing ring (washer) AS = AS1113
Bearing ring (inner ring) WS = WS81113
Bearing ring (outer ring) GS = GS81113
Ea - Rollers reference outer diameter = 86,9 mm
Eb - Rollers reference inner diameter = 71 mm
Ca - Dynamic axial load rating = 46,5 kN
C0a - Static axial load rating = 254 kN
Cua - Limit axial load rating = 31 kN
N lim - Grease lubrication limit speed = 750 tr/min
N lim - Oil lubrication limit speed = 3000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
