012374

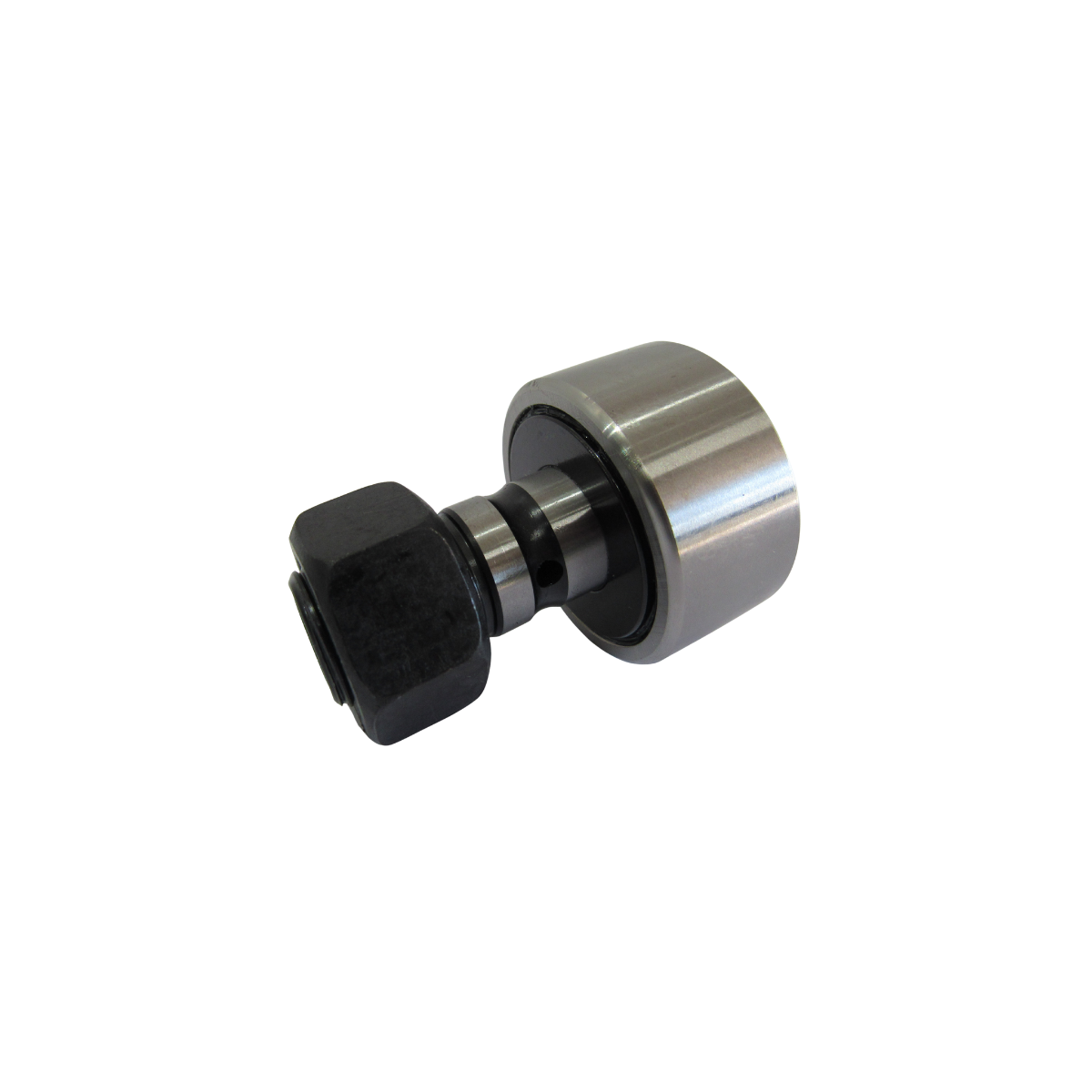

KR47XLLH/3S NKR ROLAMENTO INDUSTRIAL ROLO DE COMANDO-LEVA
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 2 |
| São Paulo | 2 |
| Total | 4 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

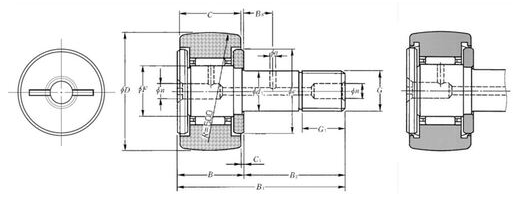

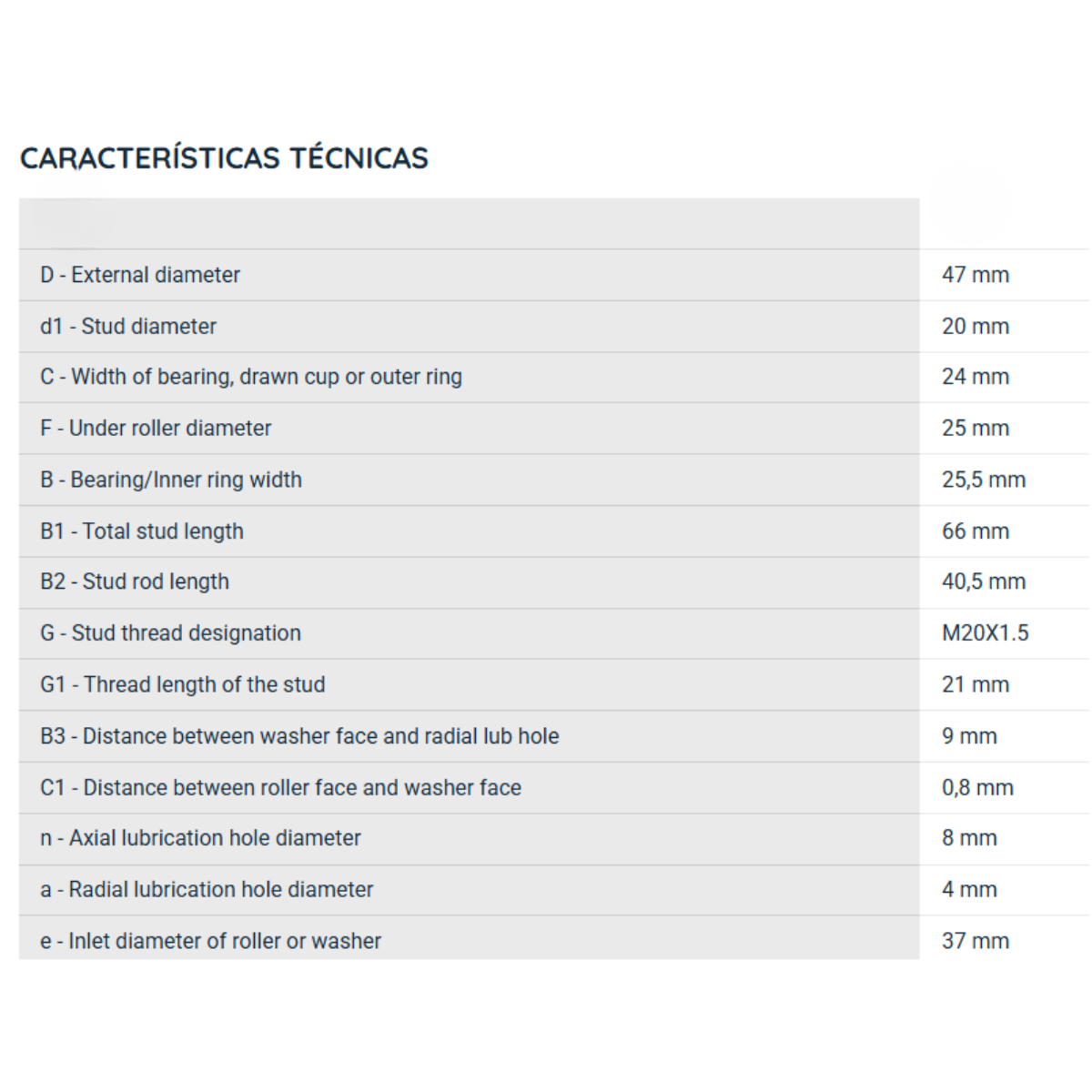

CARACTERÍSTICAS TÉCNICAS
D - External diameter = 47 mm
d1 - Stud diameter = 20 mm
C - Width of bearing, drawn cup or outer ring = 24 mm
F - Under roller diameter = 25 mm
B - Bearing/Inner ring width = 25,5 mm
B1 - Total stud length = 66 mm
B2 - Stud rod length = 40,5 mm
G - Stud thread designation = M20X1.5
G1 - Thread length of the stud = 21 mm
B3 - Distance between washer face and radial lub hole = 9 mm
C1 - Distance between roller face and washer face = 0,8 mm
n - Axial lubrication hole diameter = 8 mm
a - Radial lubrication hole diameter = 4 mm
e - Inlet diameter of roller or washer = 37 mm

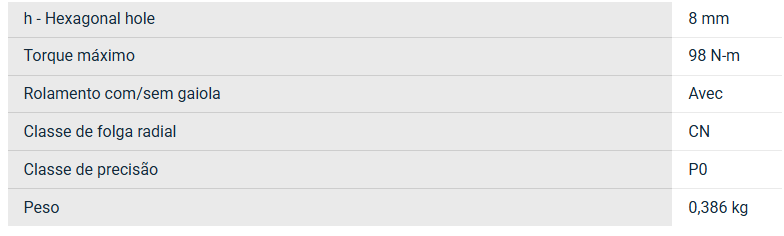

h - Hexagonal hole = 8 mm
Torque máximo = 98 N-m
Rolamento com/sem gaiola = Avec
Classe de folga radial = CN
Classe de precisão P0
Cr - Dynamic load rating = 20,7 kN
C0r - Static load rating = 33,5 kN
Track load capacity cylindrical outer ring = 21 kN
N lim - Grease lubrication limit speed = 6000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 100 °C
