012136
AXK3552 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1107 35X52X2
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 6 |
| Total | 6 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.
CARACTERÍSTICAS TÉCNICAS

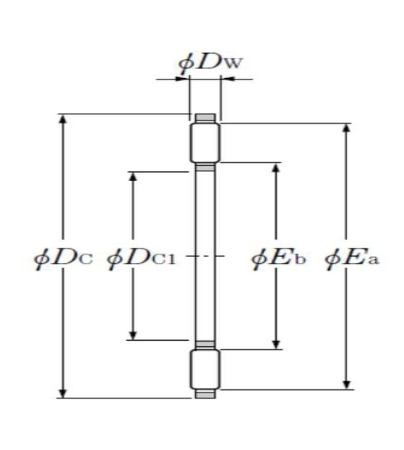

Dc1 - Roller cage bore diameter = 35 mm
Dc - Roller cage outer diameter = 52 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1107
Bearing ring (inner ring) WS = WS81107
Bearing ring (outer ring) GS = GS81107
Ea - Rollers reference outer diameter = 49,4 mm
Eb - Rollers reference inner diameter = 39,5 mm
Ca - Dynamic axial load rating = 17,8 kN
C0a - Static axial load rating = 81,5 kN
Cua - Limit axial load rating = 9,9 kN
N lim - Grease lubrication limit speed = 1400 tr/min
N lim - Oil lubrication limit speed = 5500 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 35 mm
Dc - Roller cage outer diameter = 52 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1107
Bearing ring (inner ring) WS = WS81107
Bearing ring (outer ring) GS = GS81107
Ea - Rollers reference outer diameter = 49,4 mm
Eb - Rollers reference inner diameter = 39,5 mm
Ca - Dynamic axial load rating = 17,8 kN
C0a - Static axial load rating = 81,5 kN
Cua - Limit axial load rating = 9,9 kN
N lim - Grease lubrication limit speed = 1400 tr/min
N lim - Oil lubrication limit speed = 5500 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
