011798

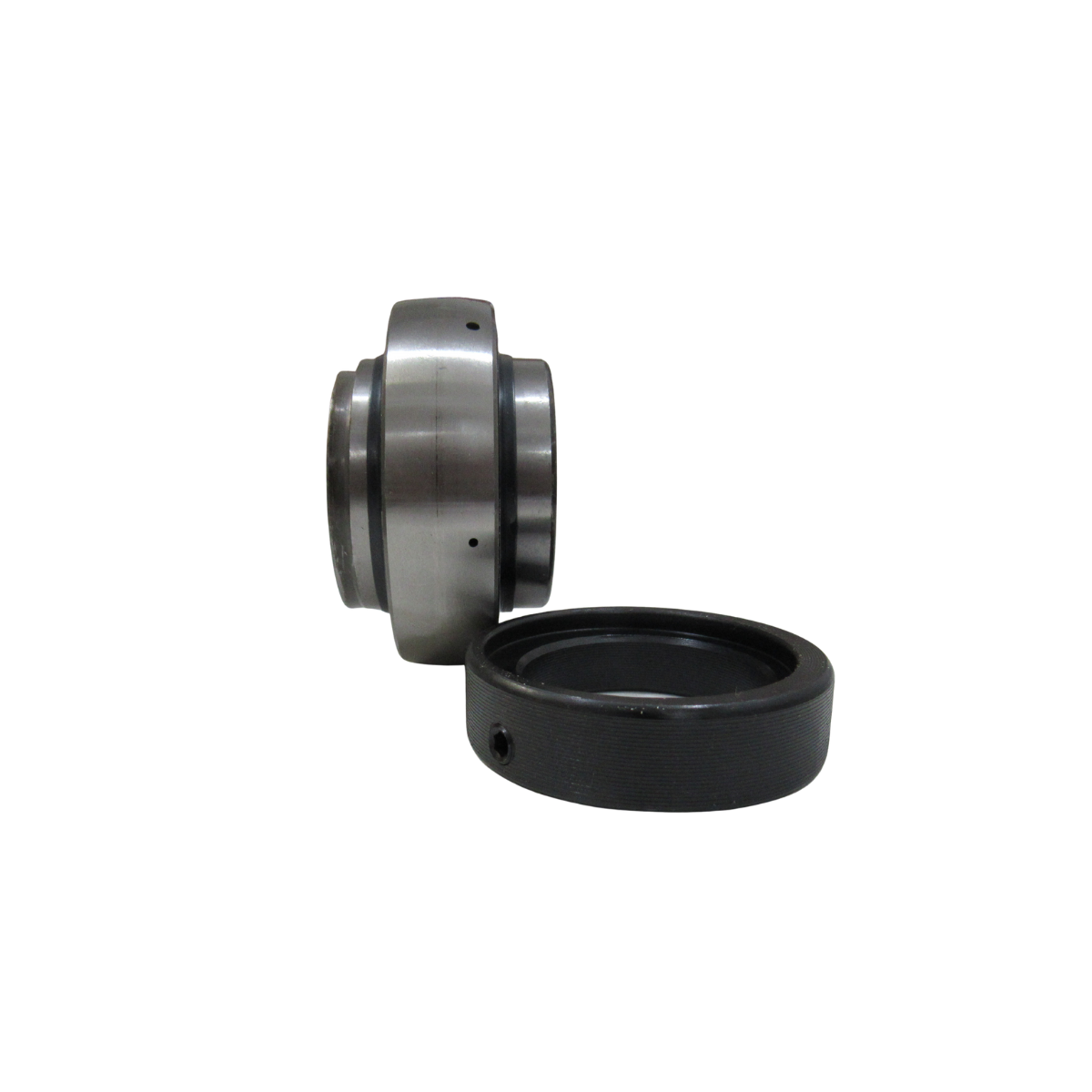

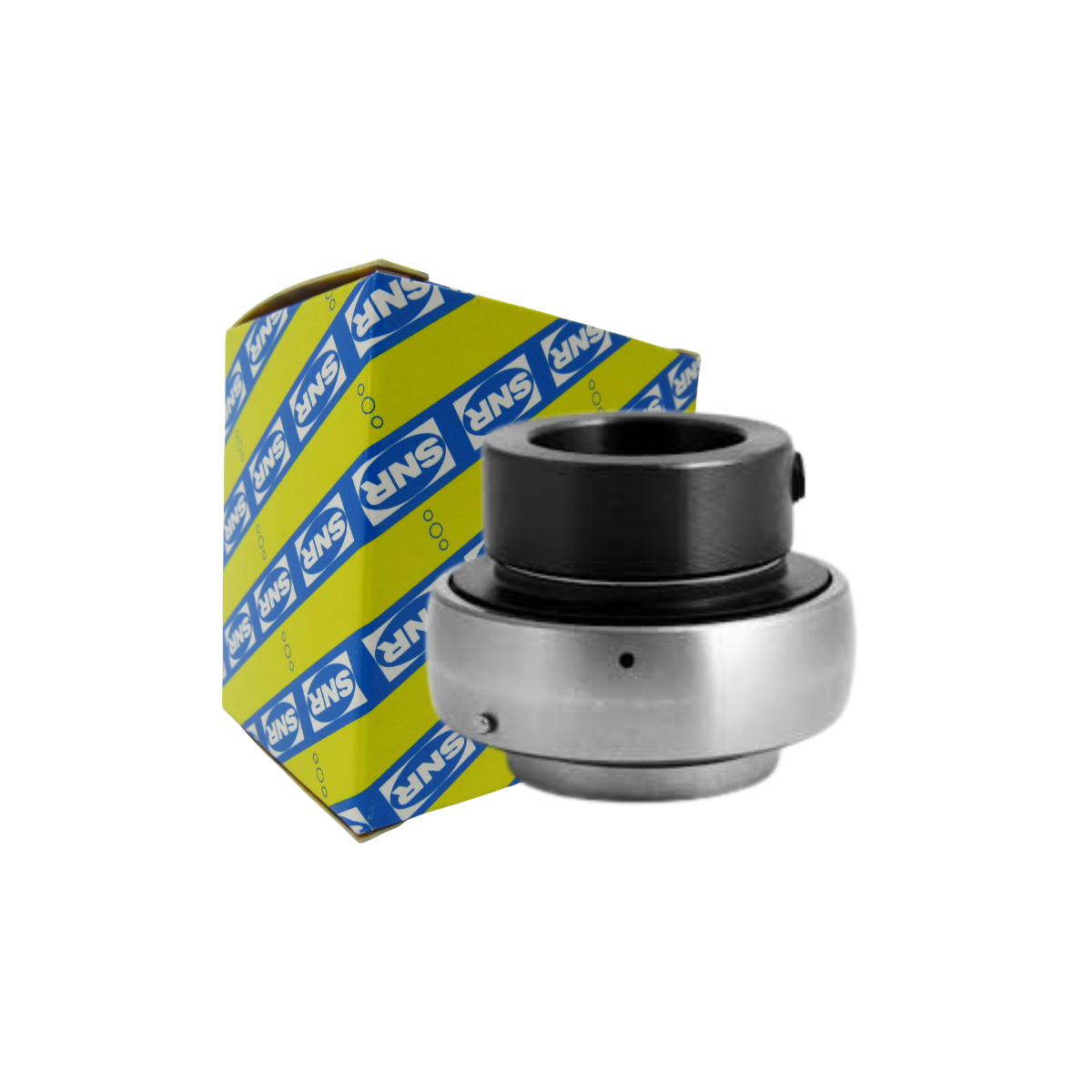

EX20515G2 SNR ROLAMENTO FIXO ESFERAS 23,81X52X44,30 =G1015KRRB
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 6 |
| São Paulo | 1 |
| Total | 7 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

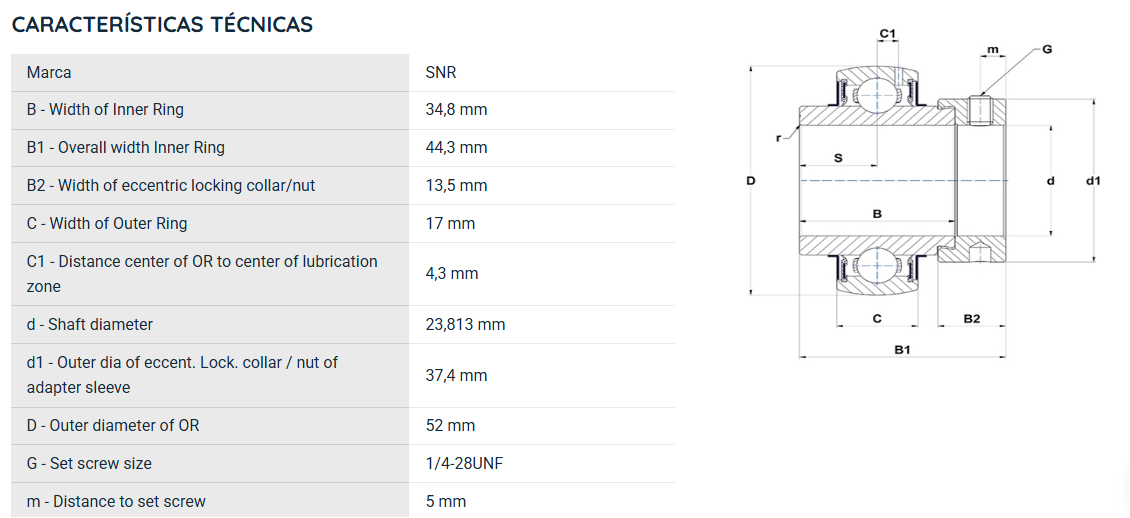

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 34,8 mm
B1 - Overall width Inner Ring = 44,3 mm
B2 - Width of eccentric locking collar/nut = 13,5 mm
C - Width of Outer Ring = 17 mm
C1 - Distance center of OR to center of lubrication zone = 4,3 mm
d - Shaft diameter = 23,813 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 37,4 mm
D - Outer diameter of OR = 52 mm
G - Set screw size = 1/4-28UNF
m - Distance to set screw = 5 mm

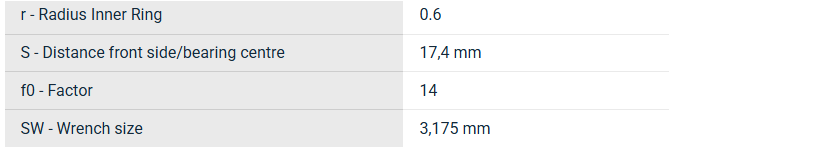

r - Radius Inner Ring = 0.6
S - Distance front side/bearing centre = 17,4 mm
f0 - Factor = 14
SW - Wrench size = 3,175 mm
C - Dynamic load rating = 14 kN
C0 - Static load rating = 7,88 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
