004863

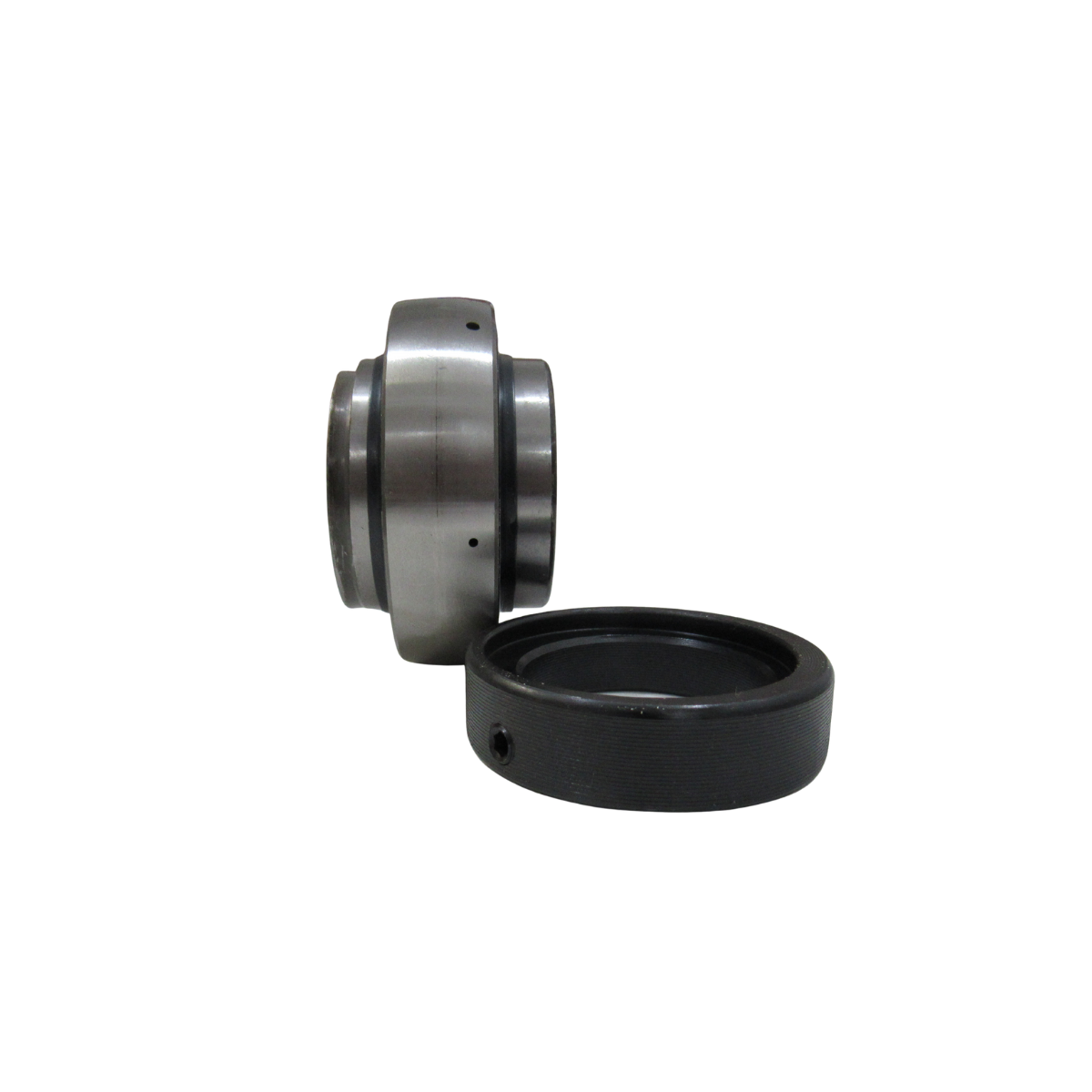

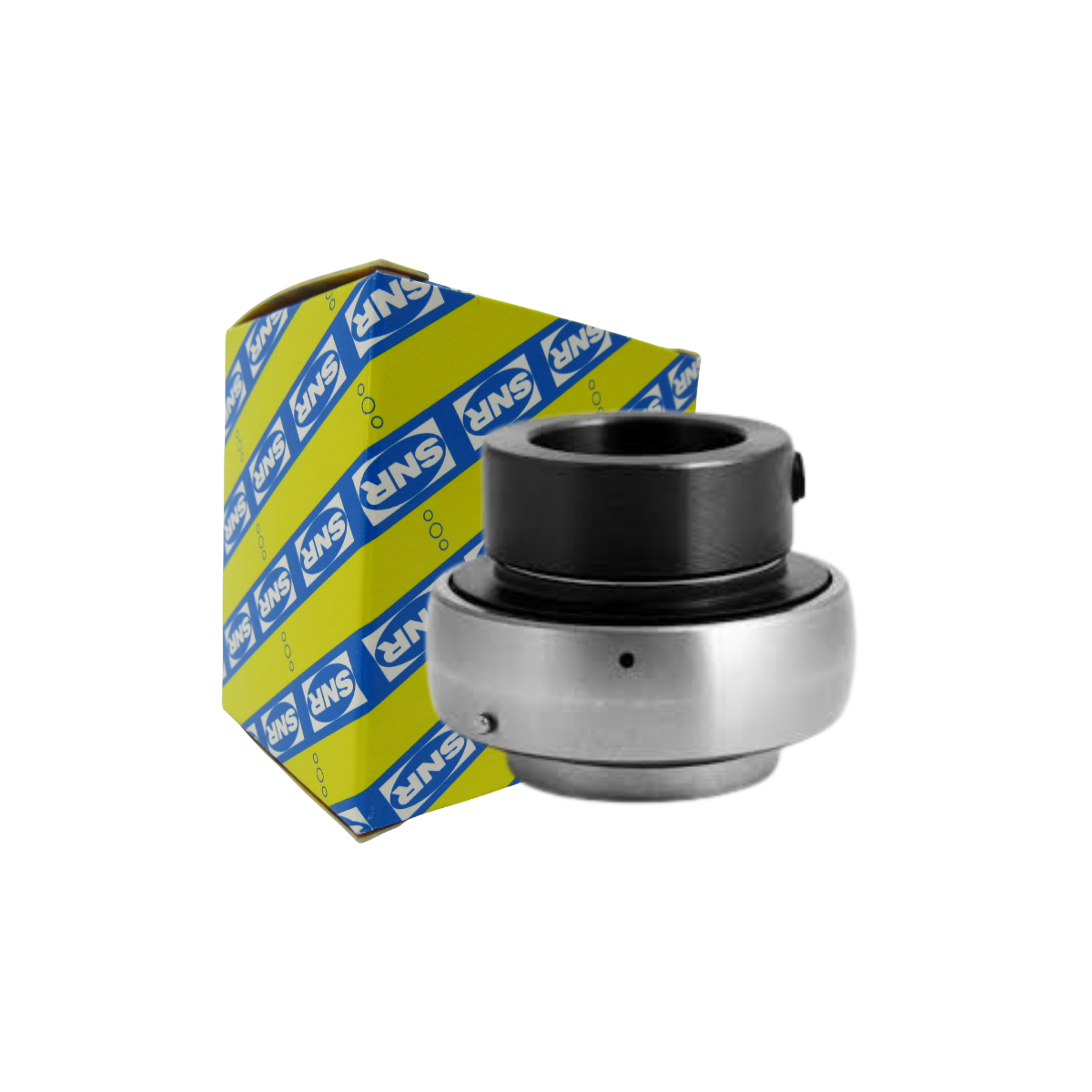

EX20619G2 SNR ROLAMENTO FIXO ESFERAS 30,16X62X48,4 = G1103KRRB
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 10 |
| Caxias do Sul | 23 |
| São Paulo | 38 |
| Total | 71 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

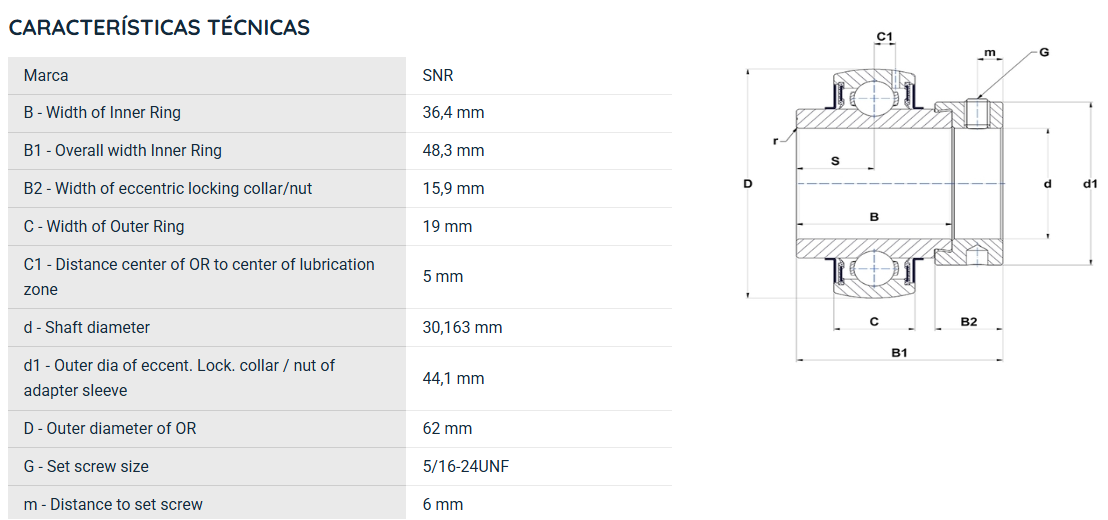

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 36,4 mm
B1 - Overall width Inner Ring = 48,3 mm
B2 - Width of eccentric locking collar/nut = 15,9 mm
C - Width of Outer Ring = 19 mm
C1 - Distance center of OR to center of lubrication zone = 5 mm
d - Shaft diameter = 30,163 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 44,1 mm
D - Outer diameter of OR = 62 mm
G - Set screw size = 5/16-24UNF
m - Distance to set screw = 6 mm

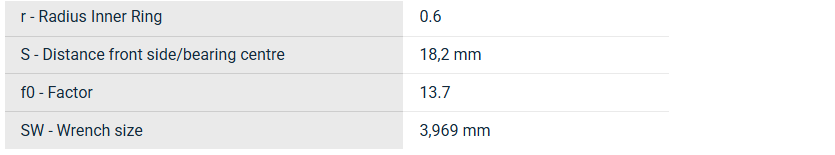

r - Radius Inner Ring = 0.6
S - Distance front side/bearing centre = 18,2 mm
f0 - Factor = 13.7
SW - Wrench size = 3,969 mm
C - Dynamic load rating = 19,5 kN
C0 - Static load rating = 11,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
