000724

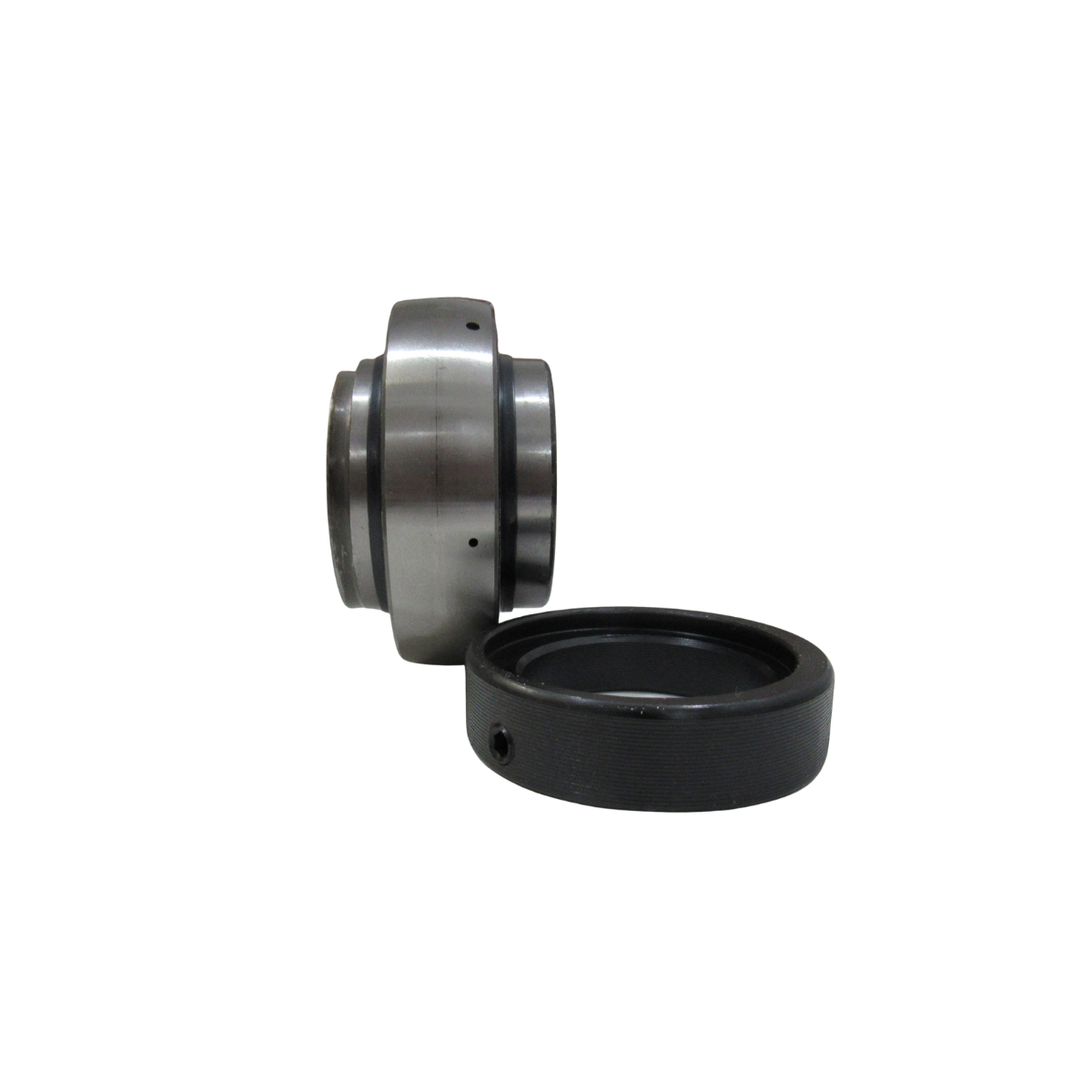

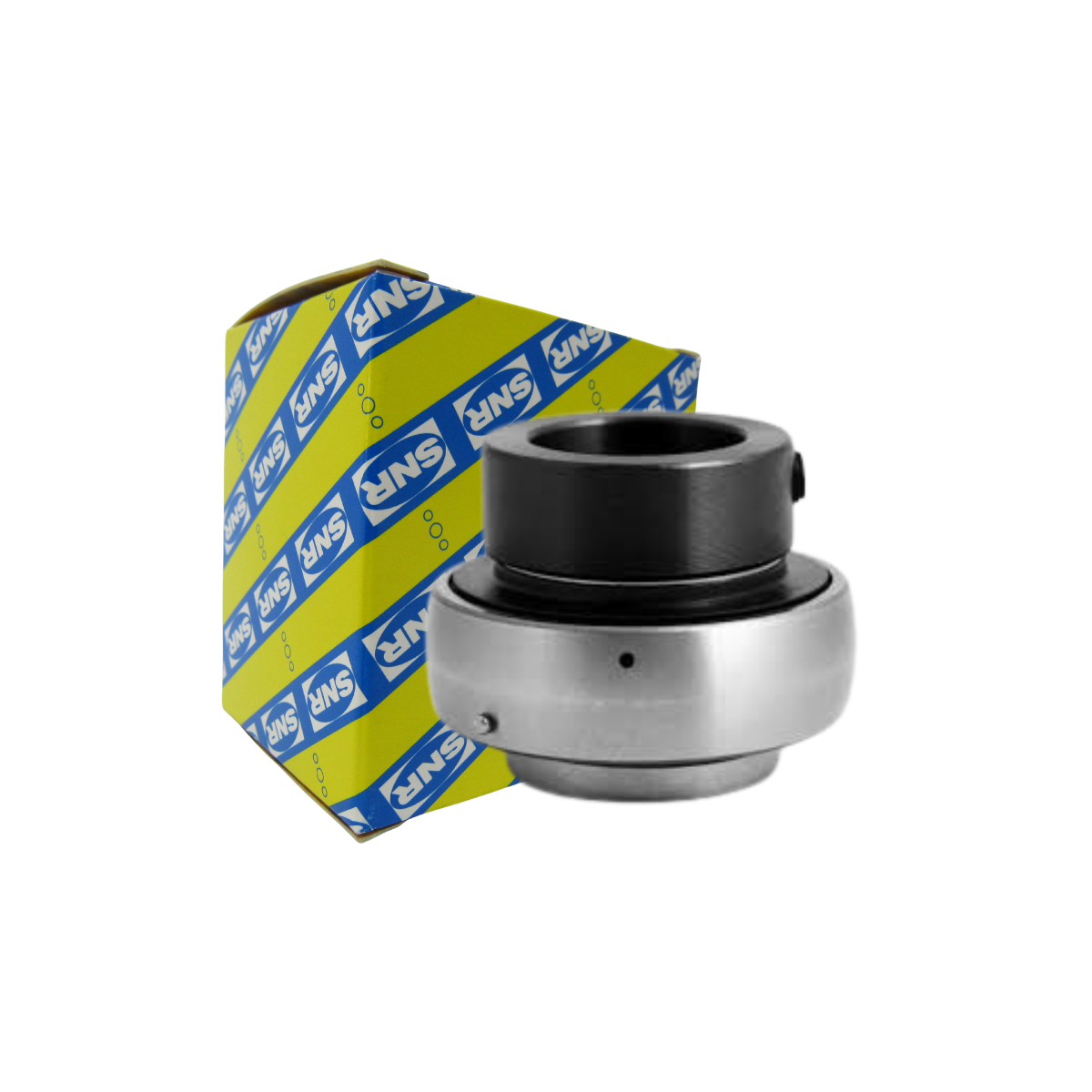

EX21031G2 SNR ROLAMENTO FIXO ESFERAS 49,21X90X62,7 =G1115KRRB
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 28 |
| Caxias do Sul | 28 |
| São Paulo | 24 |
| Total | 80 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

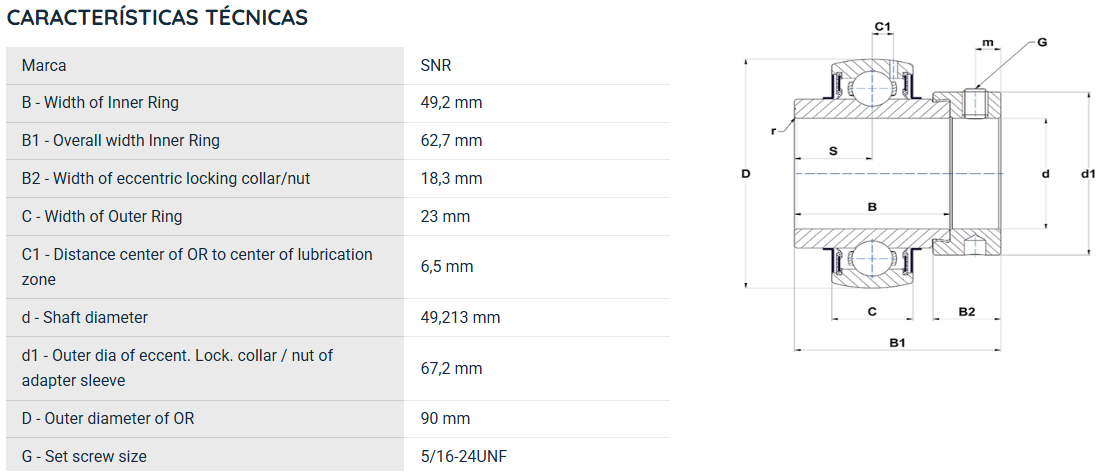

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 49,2 mm
B1 - Overall width Inner Ring = 62,7 mm
B2 - Width of eccentric locking collar/nut = 18,3 mm
C - Width of Outer Ring = 23 mm
C1 - Distance center of OR to center of lubrication zone = 6,5 mm
d - Shaft diameter = 49,213 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 67,2 mm
D - Outer diameter of OR = 90 mm
G - Set screw size = 5/16-24UNF

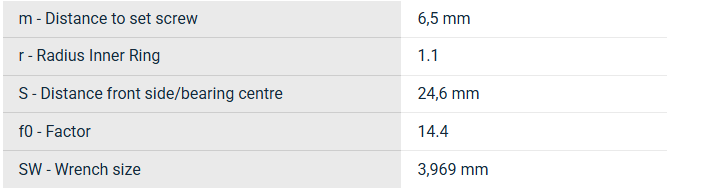

m - Distance to set screw = 6,5 mm
r - Radius Inner Ring = 1.1
S - Distance front side/bearing centre = 24,6 mm
f0 - Factor = 14.4
SW - Wrench size = 3,969 mm
C - Dynamic load rating = 35,1 kN
C0 - Static load rating = 23,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
B - Width of Inner Ring = 49,2 mm
B1 - Overall width Inner Ring = 62,7 mm
B2 - Width of eccentric locking collar/nut = 18,3 mm
C - Width of Outer Ring = 23 mm
C1 - Distance center of OR to center of lubrication zone = 6,5 mm
d - Shaft diameter = 49,213 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 67,2 mm
D - Outer diameter of OR = 90 mm
G - Set screw size = 5/16-24UNF
m - Distance to set screw = 6,5 mm
r - Radius Inner Ring = 1.1
S - Distance front side/bearing centre = 24,6 mm
f0 - Factor = 14.4
SW - Wrench size = 3,969 mm
C - Dynamic load rating = 35,1 kN
C0 - Static load rating = 23,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
