000720

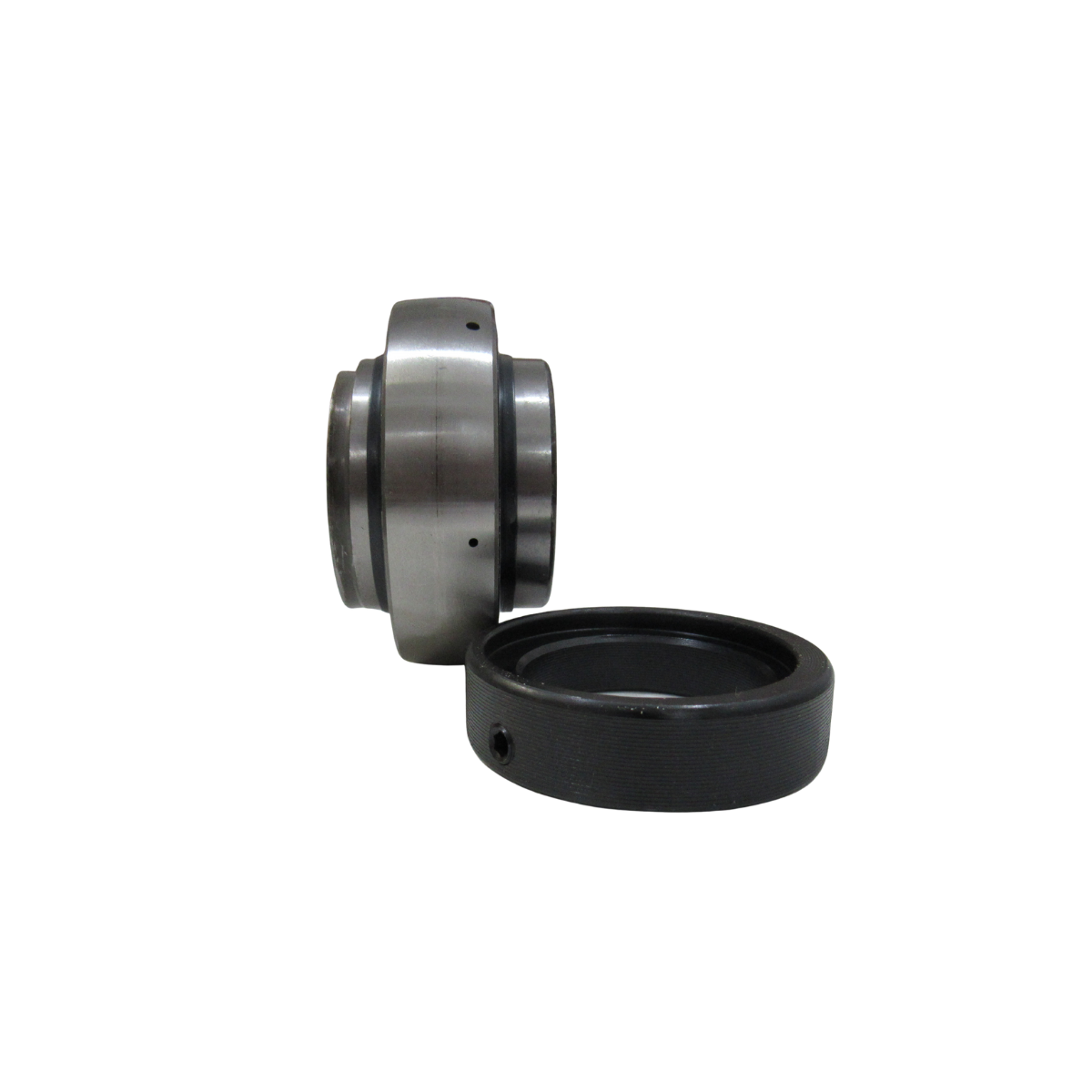

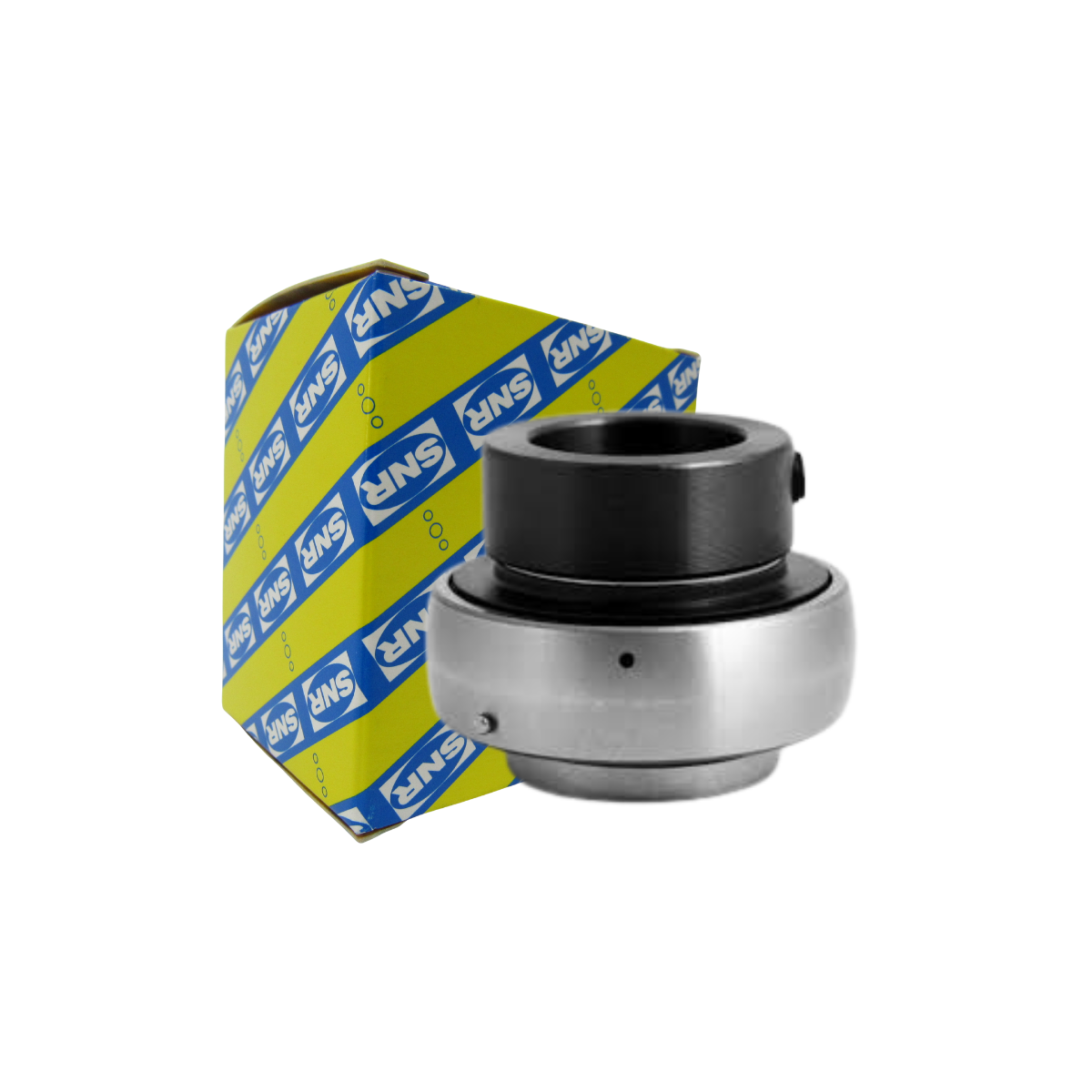

EX21135G2 SNR ROLAMENTO FIXO ESFERAS 55,56X100X71,30 =G1203KRRB
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 2 |
| Caxias do Sul | 10 |
| São Paulo | 30 |
| Total | 42 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

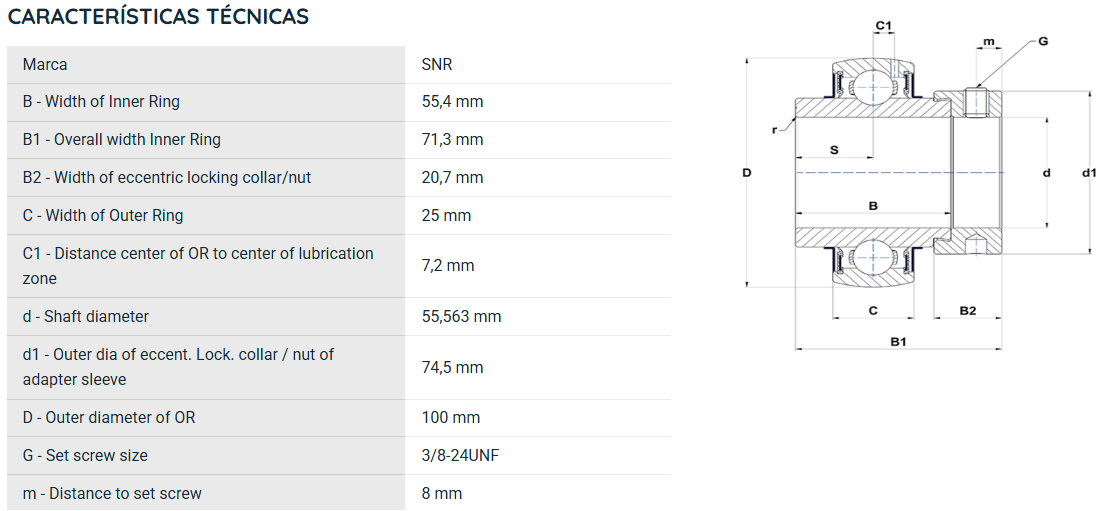

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 55,4 mm
B1 - Overall width Inner Ring = 71,3 mm
B2 - Width of eccentric locking collar/nut = 20,7 mm
C - Width of Outer Ring = 25 mm
C1 - Distance center of OR to center of lubrication zone = 7,2 mm
d - Shaft diameter = 55,563 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 74,5 mm
D - Outer diameter of OR = 100 mm
G - Set screw size = 3/8-24UNF
m - Distance to set screw = 8 mm

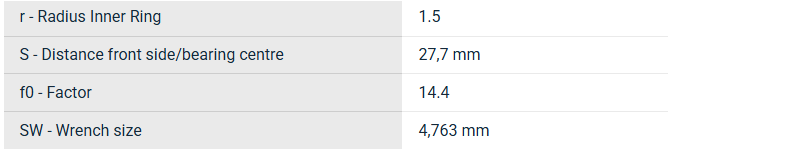

r - Radius Inner Ring = 1.5
S - Distance front side/bearing centre = 27,7 mm
f0 - Factor = 14.4
SW - Wrench size = 4,763 mm
C - Dynamic load rating = 43,55 kN
C0 - Static load rating = 29,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
B - Width of Inner Ring = 55,4 mm
B1 - Overall width Inner Ring = 71,3 mm
B2 - Width of eccentric locking collar/nut = 20,7 mm
C - Width of Outer Ring = 25 mm
C1 - Distance center of OR to center of lubrication zone = 7,2 mm
d - Shaft diameter = 55,563 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 74,5 mm
D - Outer diameter of OR = 100 mm
G - Set screw size = 3/8-24UNF
m - Distance to set screw = 8 mm
r - Radius Inner Ring = 1.5
S - Distance front side/bearing centre = 27,7 mm
f0 - Factor = 14.4
SW - Wrench size = 4,763 mm
C - Dynamic load rating = 43,55 kN
C0 - Static load rating = 29,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
