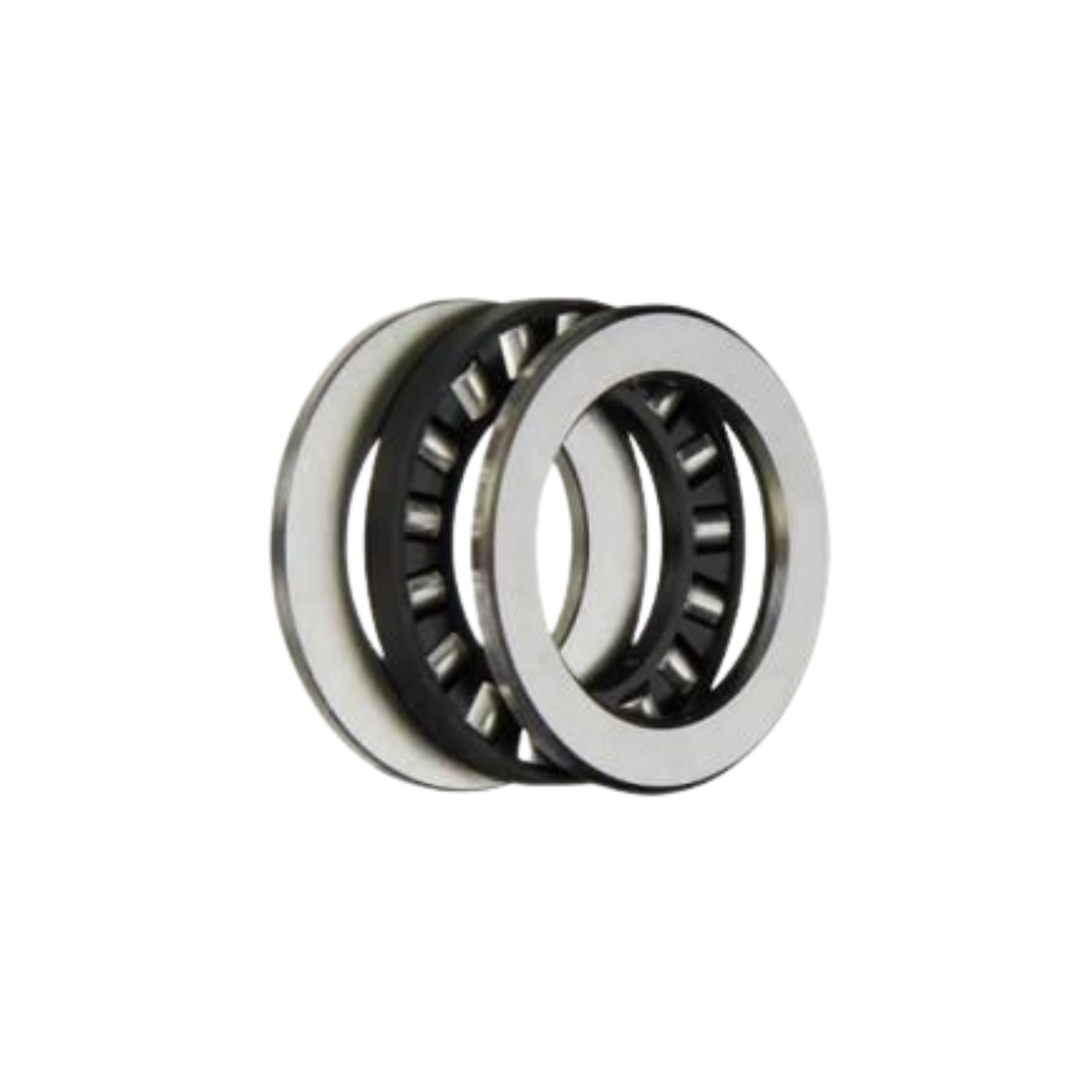

81213JT NKR ROLAMENTO INDUSTRIAL AXIAL ROLOS CILINDRICOS 65X100X27
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 4 |
| Total | 4 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

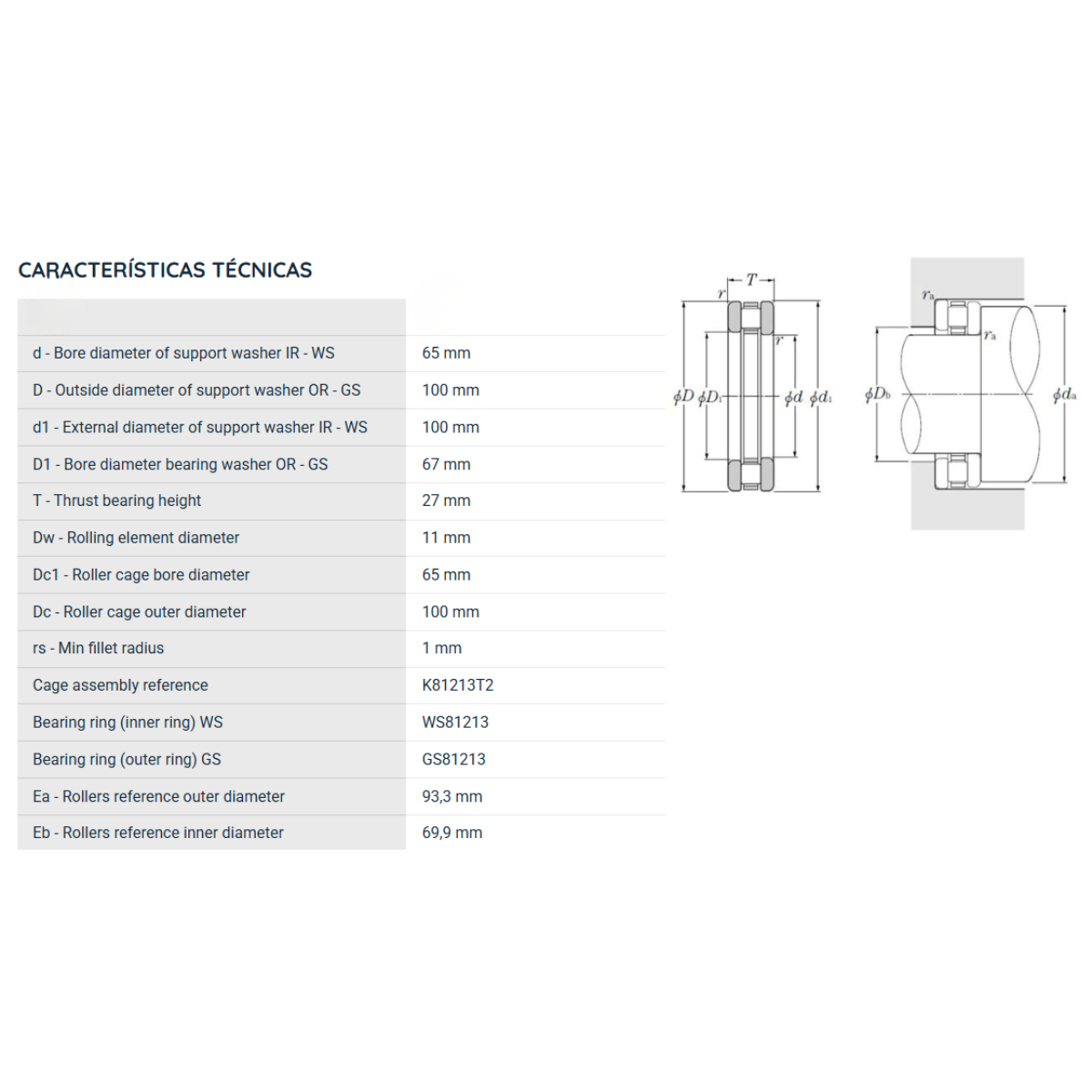

CARACTERÍSTICAS TÉCNICAS
d - Bore diameter of support washer IR - WS = 65 mm
D - Outside diameter of support washer OR - GS = 100 mm
d1 - External diameter of support washer IR - WS = 100 mm
D1 - Bore diameter bearing washer OR - GS = 67 mm
T - Thrust bearing height = 27 mm
Dw - Rolling element diameter = 11 mm
Dc1 - Roller cage bore diameter = 65 mm
Dc - Roller cage outer diameter = 100 mm
rs - Min fillet radius = 1 mm
Cage assembly reference = K81213JT
Bearing ring (inner ring) WS WS81213
Bearing ring (outer ring) GS GS81213
Ea - Rollers reference outer diameter = 93,3 mm
Eb - Rollers reference inner diameter = 69,9 mm
Cage assembly mass = 0,215 kg
Bearing ring (inner ring) WS mass = 0,28 kg
Bearing ring (outer ring) GS mass = 0,28 kg
a - Dynamic axial load rating = 130 kN
C0a - Static axial load rating = 385 kN
Cua - Limit axial load rating = 47 kN
N lim - Grease lubrication limit speed = 730 tr/min
N lim - Oil lubrication limit speed = 2900 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
da min - Min shoulder diameter IR = 93 mm
Db max - Max OR shoulder diameter = 71 mm
ras max - Max shaft & housing fillet radius = 1 mm
