3382

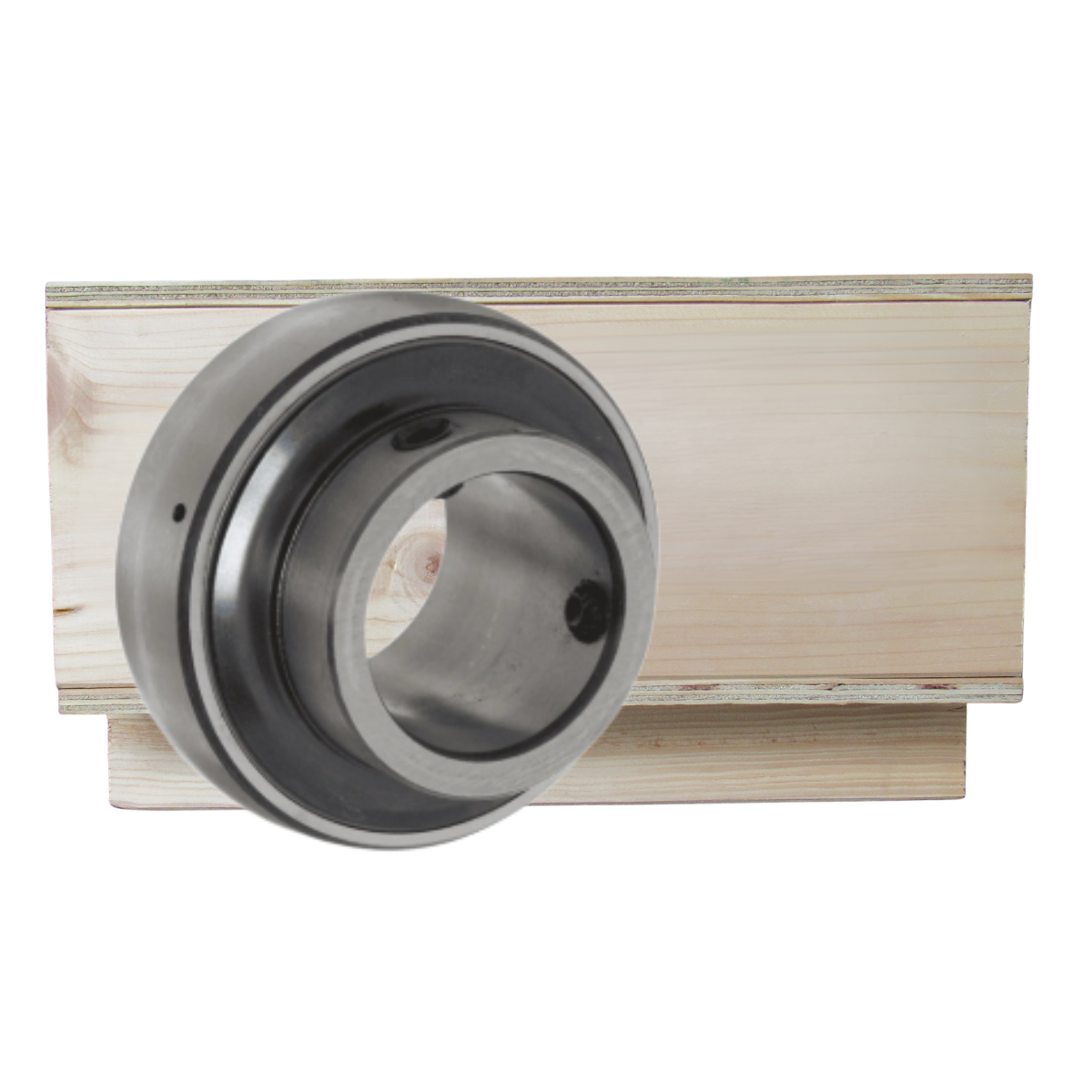

UC328 NKR ROLAMENTO FIXO ESFERAS 140X300X145
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 2 |
| Total | 2 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

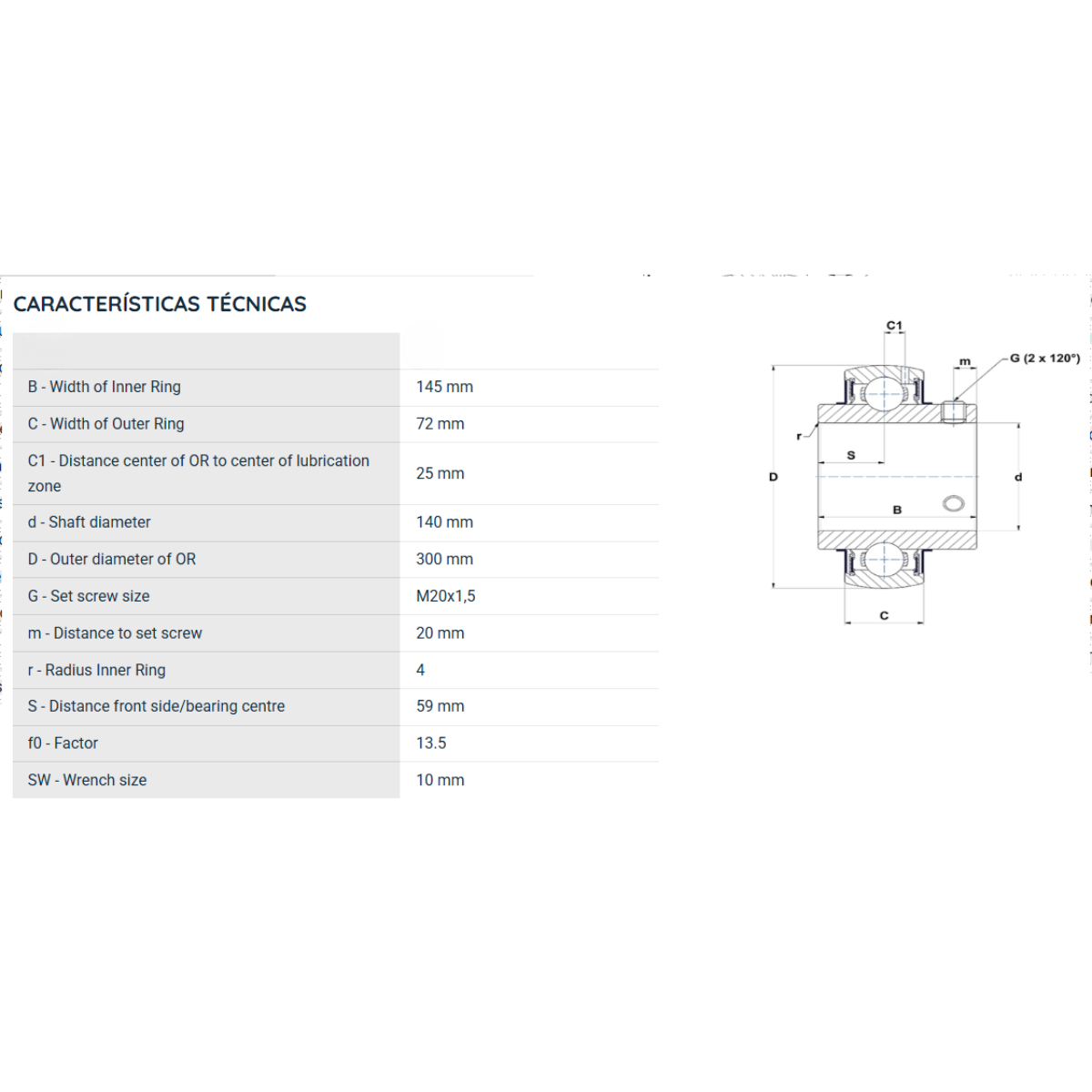

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 145 mm
C - Width of Outer Ring = 72 mm
C1 - Distance center of OR to center of lubrication zone = 25 mm
d - Shaft diameter = 140 mm
D - Outer diameter of OR = 300 mm
G - Set screw size = M20x1,5
m - Distance to set screw = 20 mm
r - Radius Inner Ring = 4
S - Distance front side/bearing centre = 59 mm
f0 - Factor = 13.5
SW - Wrench size = 10 mm
C - Dynamic load rating = 275 kN
C0 - Static load rating = 272 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
B - Width of Inner Ring = 145 mm
C - Width of Outer Ring = 72 mm
C1 - Distance center of OR to center of lubrication zone = 25 mm
d - Shaft diameter = 140 mm
D - Outer diameter of OR = 300 mm
G - Set screw size = M20x1,5
m - Distance to set screw = 20 mm
r - Radius Inner Ring = 4
S - Distance front side/bearing centre = 59 mm
f0 - Factor = 13.5
SW - Wrench size = 10 mm
C - Dynamic load rating = 275 kN
C0 - Static load rating = 272 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
