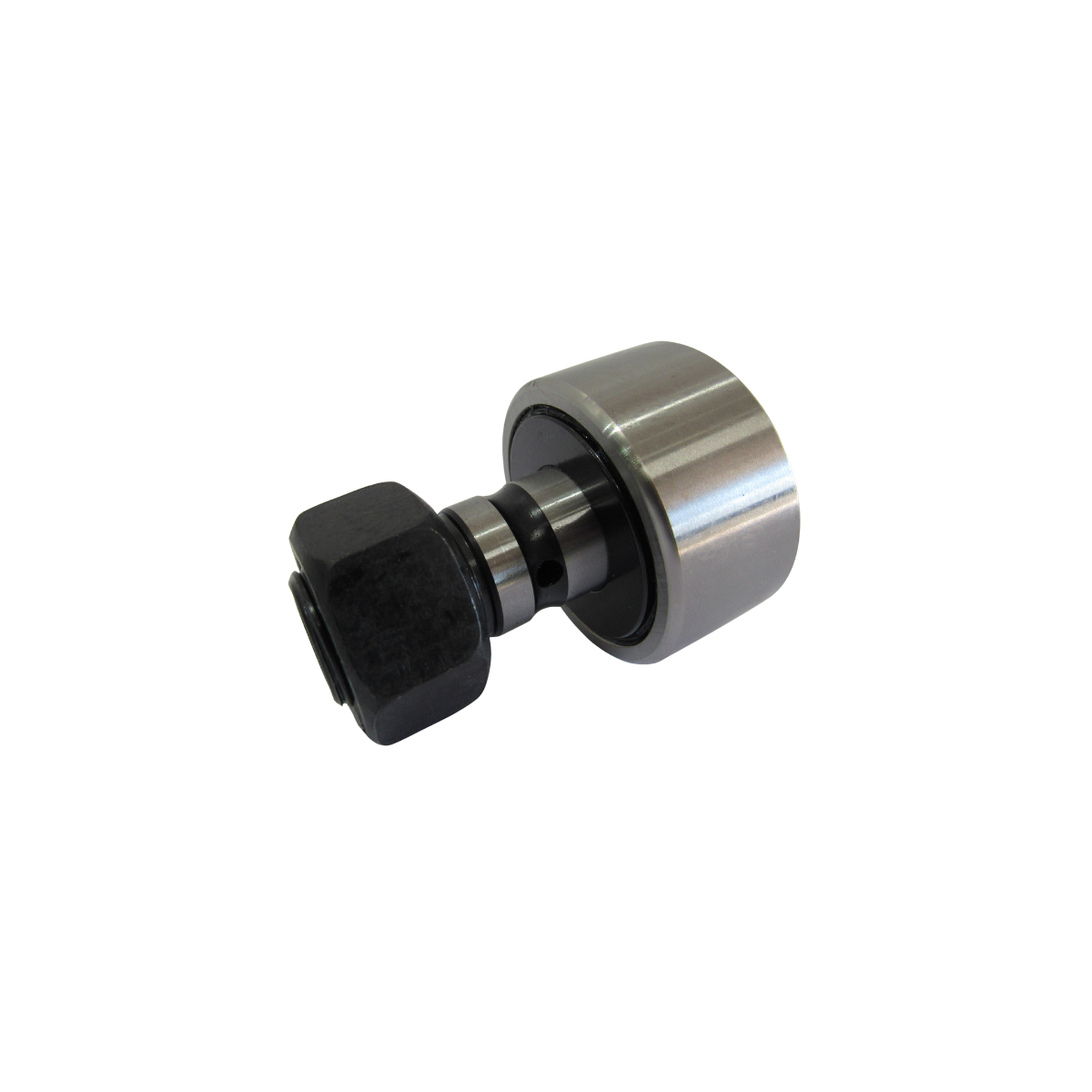

KR35PP/P6 NKR ROLAMENTO INDUSTRIAL ROLO DE COMANDO-LEVA 16X35X19.6
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 100 |
| Total | 100 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

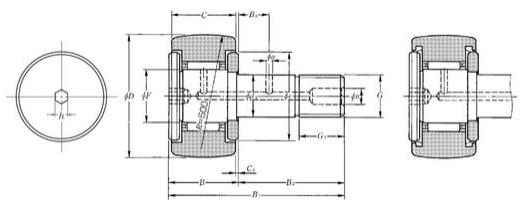

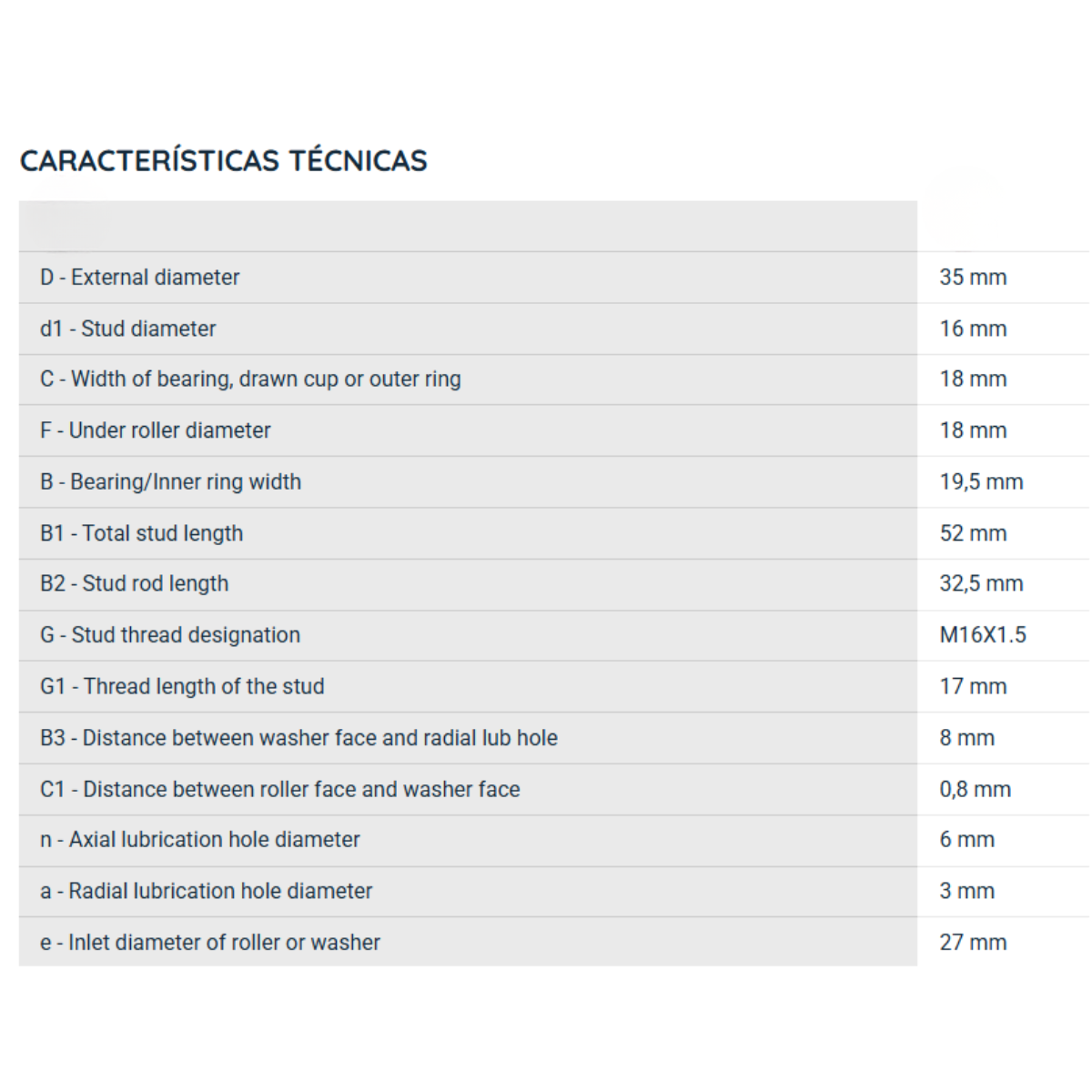

CARACTERÍSTICAS TÉCNICAS
D - External diameter = 35 mm
d1 - Stud diameter = 16 mm
C - Width of bearing, drawn cup or outer ring = 18 mm
F - Under roller diameter = 18 mm
B - Bearing/Inner ring width = 19,5 mm
B1 - Total stud length = 52 mm
B2 - Stud rod length = 32,5 mm
G - Stud thread designation = M16X1.5
G1 - Thread length of the stud = 17 mm
B3 - Distance between washer face and radial lub hole = 8 mm
C1 - Distance between roller face and washer face = 0,8 mm
n - Axial lubrication hole diameter = 6 mm
a - Radial lubrication hole diameter = 3 mm
e - Inlet diameter of roller or washer = 27 mm

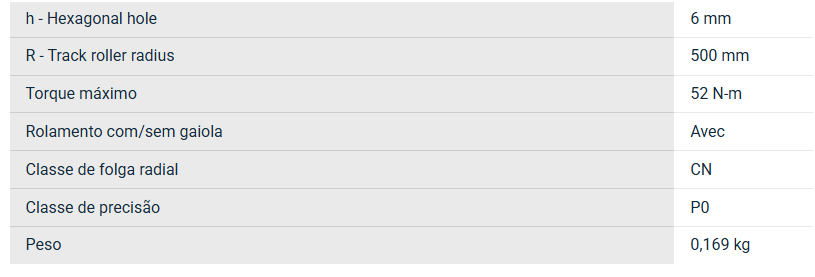

h - Hexagonal hole = 6 mm
R - Track roller radius = 500 mm
Torque máximo = 52 N-m
Rolamento com/sem gaiola Avec
Classe de folga radial = CN
Classe de precisão P0
Cr - Dynamic load rating = 12,2 kN
C0r - Static load rating = 17,9 kN
Track load capacity spherical outer ring = 3,2 kN
N lim - Grease lubrication limit speed = 8000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 100 °C
