040427
AXK150190 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1130 150X190X5MM
Estoques
| Cidade | Quantidade |
|---|---|
| São Paulo | 37 |
| Total | 37 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

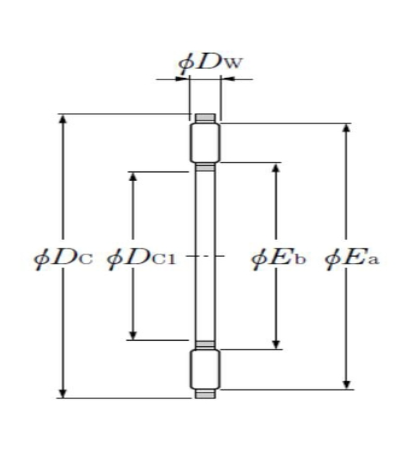

CARACTERÍSTICAS TÉCNICAS
Dc1 - Roller cage bore diameter = 150 mm
Dc - Roller cage outer diameter = 190 mm
Dw - Rolling element diameter = 5 mm
Bearing ring (washer) AS = AS1130
Bearing ring (inner ring) WS = WS81130
Bearing ring (outer ring) GS = GS81130
Ea - Rollers reference outer diameter = 184,2 mm
Eb - Rollers reference inner diameter = 156 mm
Ca - Dynamic axial load rating = 149 kN
C0a - Static axial load rating = 1020 kN
Cua - Limit axial load rating = 106 kN
N lim - Grease lubrication limit speed = 350 tr/min
N lim - Oil lubrication limit speed = 1400 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 150 mm
Dc - Roller cage outer diameter = 190 mm
Dw - Rolling element diameter = 5 mm
Bearing ring (washer) AS = AS1130
Bearing ring (inner ring) WS = WS81130
Bearing ring (outer ring) GS = GS81130
Ea - Rollers reference outer diameter = 184,2 mm
Eb - Rollers reference inner diameter = 156 mm
Ca - Dynamic axial load rating = 149 kN
C0a - Static axial load rating = 1020 kN
Cua - Limit axial load rating = 106 kN
N lim - Grease lubrication limit speed = 350 tr/min
N lim - Oil lubrication limit speed = 1400 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
