037582

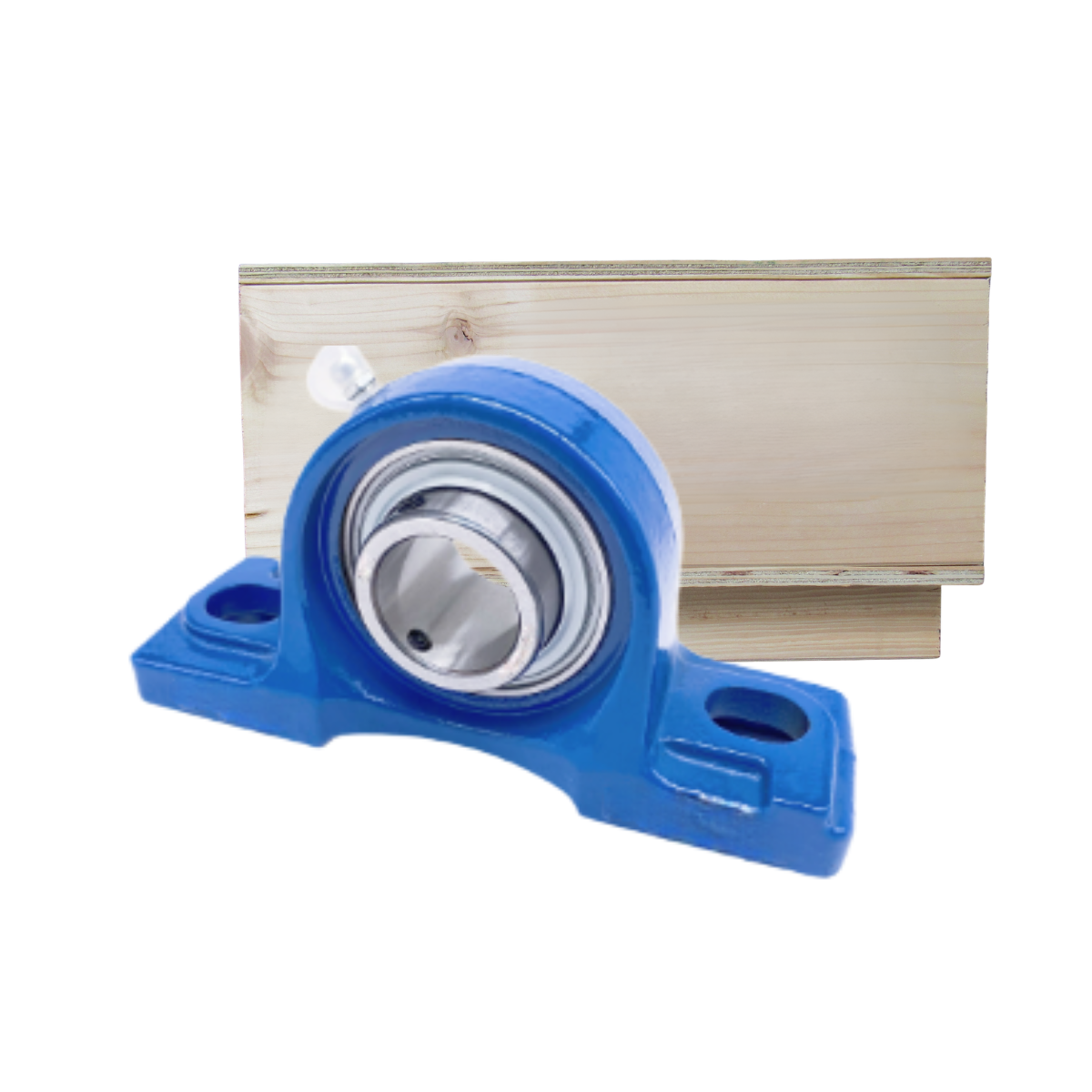

UCP320 SNR CONJUNTO INDUSTRIAL MANCAL E ROLAMENTO
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 2 |
| São Paulo | 3 |
| Total | 5 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

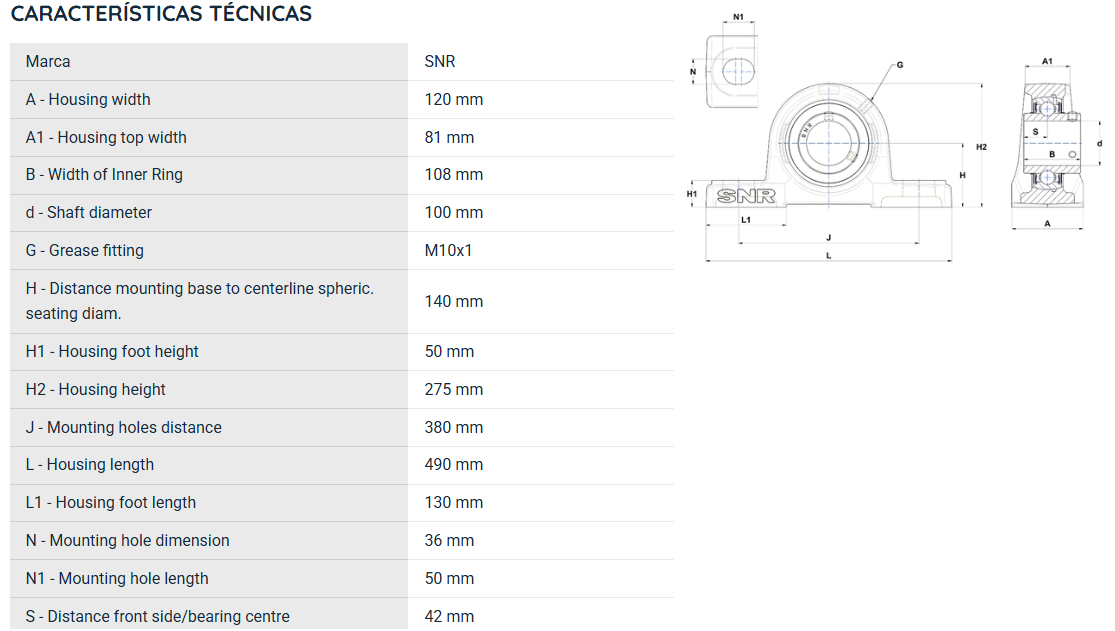

CARACTERÍSTICAS TÉCNICAS
A - Housing width = 120 mm
A1 - Housing top width = 81 mm
B - Width of Inner Ring = 108 mm
d - Shaft diameter = 100 mm
G - Grease fitting = M10x1
H - Distance mounting base to centerline spheric. seating diam. = 140 mm
H1 - Housing foot height = 50 mm
H2 - Housing height = 275 mm
J - Mounting holes distance = 380 mm
L - Housing length = 490 mm
L1 - Housing foot length = 130 mm
N - Mounting hole dimension = 36 mm
N1 - Mounting hole length = 50 mm
S - Distance front side/bearing centre = 42 mm
C - Dynamic load rating = 171,6 kN
C0 - Static load rating = 140 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
