033026

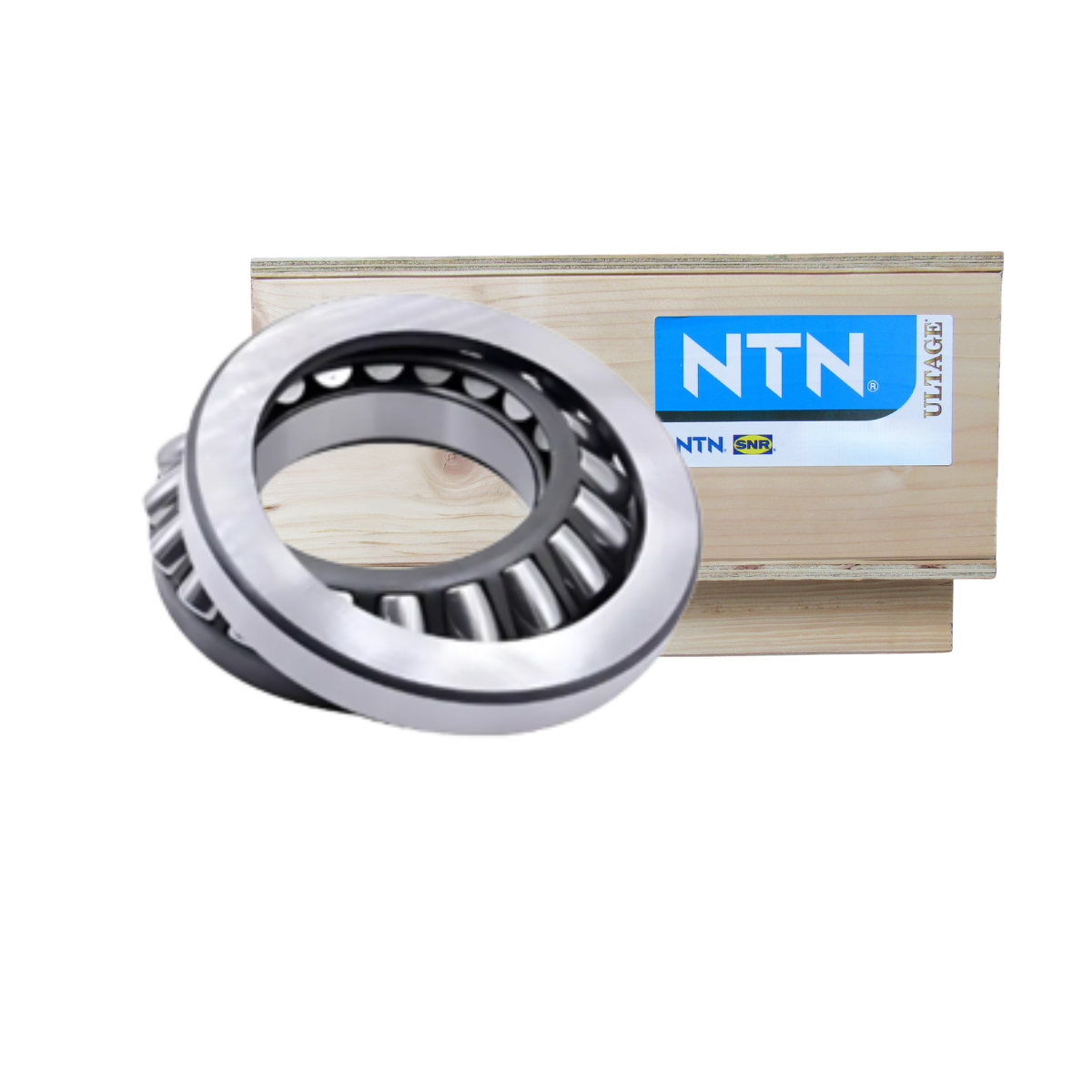

29440E SNR ROLAMENTO INDUSTRIAL AXIAL AUTOCOMP ROLOS 200X400X122(MM)
Estoques
| Cidade | Quantidade |
|---|---|
| São Paulo | 3 |
| Total | 3 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.
CARACTERÍSTICAS TÉCNICAS
d - Internal diameter of shaft washer = 200 mm
D - Housing washer outer diameter = 400 mm
D1 - Inner diameter housing washer = 276,5 mm
d1 - External diameter shaft washer = 355,7 mm
T - Thrust bearing height = 122 mm
C - Housing washer width = 59,4 mm
B - Shaft washer width = 77 mm
B2 - Distance large face of shaft washer / metal cage = 104 mm
a - Charge load application point = 122 mm
Material da gaiola Tôle
Ca - Dynamic axial load rating = 2770 kN
C0a - Static axial load rating = 8990 kN
Cua - Limit axial load rating = 790 kN
N lim - Oil lubrication limit speed = 800 tr/min
N ref - Reference thermal speed = 900 tr/min
N lim - Mechanical Limit Speed = 1500 tr/min
Tmin - Temperatura mín de operação = -40 °C
Tmax - Temperatura máx de operação = 200 °C
