032973

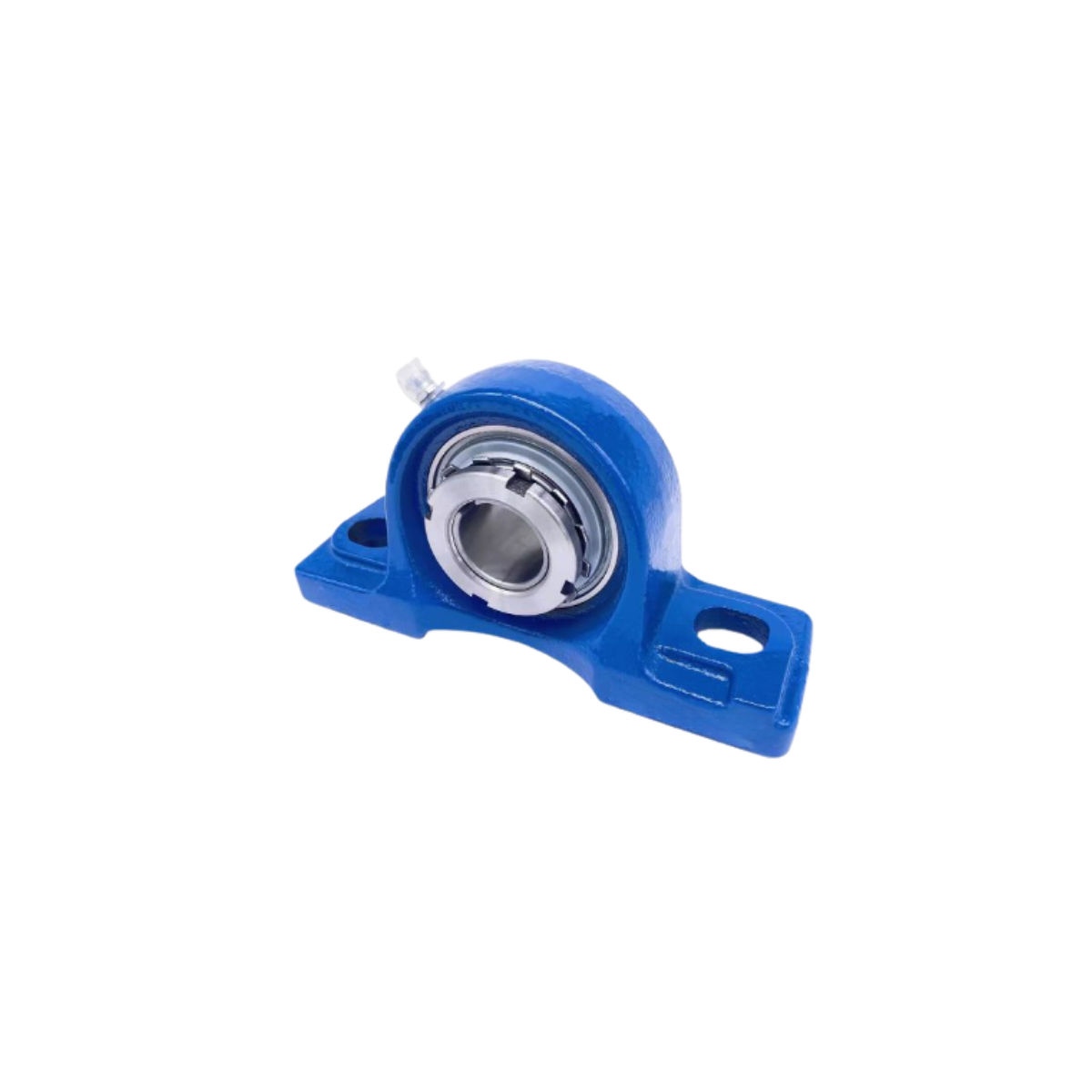

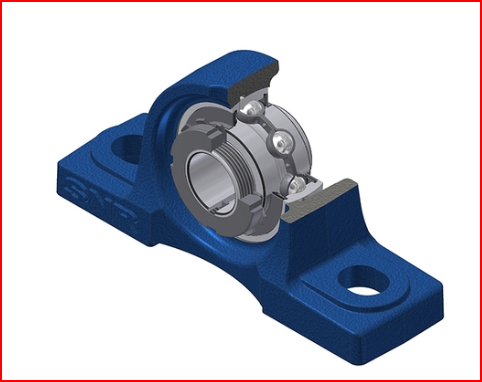

UKP212 SNR CONJUNTO INDUSTRIAL DE MANCAL E ROLAMENTO
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.

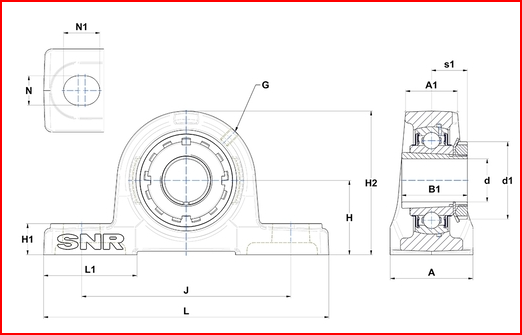

CARACTERÍSTICAS TÉCNICAS
A - Housing width = 70 mm
A1 - Housing top width = 44 mm
B - Width of Inner Ring = 36 mm
d - Shaft diameter = 55 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 80 mm
G - Grease fitting = M6x1
H - Distance mounting base to centerline spheric. seating diam. = 69,8 mm
H1 - Housing foot height = 25 mm
H2 - Housing height = 138 mm
J - Mounting holes distance = 184 mm
L - Housing length = 241 mm
L1 - Housing foot length = 70 mm
N - Mounting hole dimension = 20 mm
N1 - Mounting hole length = 25 mm
s1 - Distance nut to middle of bearing raceway = 31 mm
C - Dynamic load rating = 52,5 kN
C0 - Static load rating = 32,8 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
Adapter sleeve designation = H2312
A - Housing width = 70 mm
A1 - Housing top width = 44 mm
B - Width of Inner Ring = 36 mm
d - Shaft diameter = 55 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 80 mm
G - Grease fitting = M6x1
H - Distance mounting base to centerline spheric. seating diam. = 69,8 mm
H1 - Housing foot height = 25 mm
H2 - Housing height = 138 mm
J - Mounting holes distance = 184 mm
L - Housing length = 241 mm
L1 - Housing foot length = 70 mm
N - Mounting hole dimension = 20 mm
N1 - Mounting hole length = 25 mm
s1 - Distance nut to middle of bearing raceway = 31 mm
C - Dynamic load rating = 52,5 kN
C0 - Static load rating = 32,8 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
Adapter sleeve designation = H2312
