AXK3047 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1106 30X47X2
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
CARACTERÍSTICAS TÉCNICAS

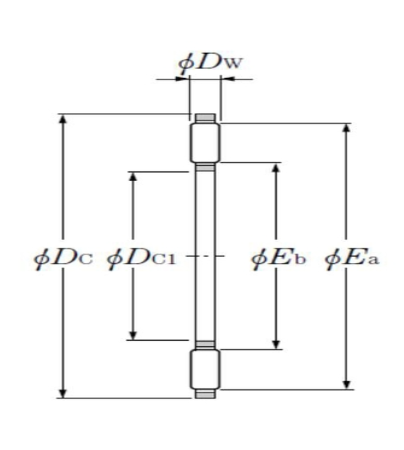

Dc1 - Roller cage bore diameter = 30 mm
Dc - Roller cage outer diameter = 47 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1106
Bearing ring (inner ring) WS = WS81106
Bearing ring (outer ring) GS = GS81106
Ea - Rollers reference outer diameter = 44,4 mm
Eb - Rollers reference inner diameter = 34,5 mm
Ca - Dynamic axial load rating = 16,3 kN
C0a - Static axial load rating = 69,5 kN
Cua - Limit axial load rating = 8,5 kN
N lim - Grease lubrication limit speed = 1500 tr/min
N lim - Oil lubrication limit speed = 6000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
