AXK1730 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1103 17X30X2
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
CARACTERÍSTICAS TÉCNICAS

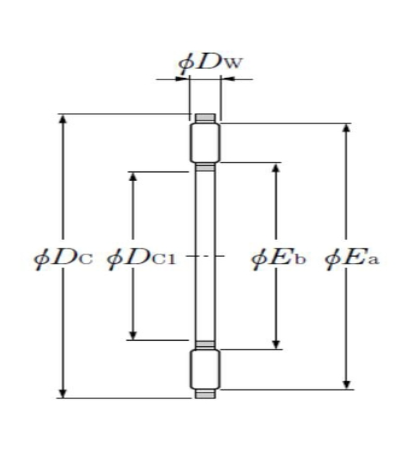

Dc1 - Roller cage bore diameter = 17 mm
Dc - Roller cage outer diameter = 30 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1103
Bearing ring (inner ring) WS = WS81103
Bearing ring (outer ring) GS = GS81103
Ea - Rollers reference outer diameter = 28,5 mm
Eb - Rollers reference inner diameter = 19,2 mm
Ca - Dynamic axial load rating = 11,9 kN
C0a - Static axial load rating = 39,5 kN
Cua - Limit axial load rating = 4,8 kN
N lim - Grease lubrication limit speed = 2500 tr/min
N lim - Oil lubrication limit speed = 10000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 17 mm
Dc - Roller cage outer diameter = 30 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1103
Bearing ring (inner ring) WS = WS81103
Bearing ring (outer ring) GS = GS81103
Ea - Rollers reference outer diameter = 28,5 mm
Eb - Rollers reference inner diameter = 19,2 mm
Ca - Dynamic axial load rating = 11,9 kN
C0a - Static axial load rating = 39,5 kN
Cua - Limit axial load rating = 4,8 kN
N lim - Grease lubrication limit speed = 2500 tr/min
N lim - Oil lubrication limit speed = 10000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
