026201

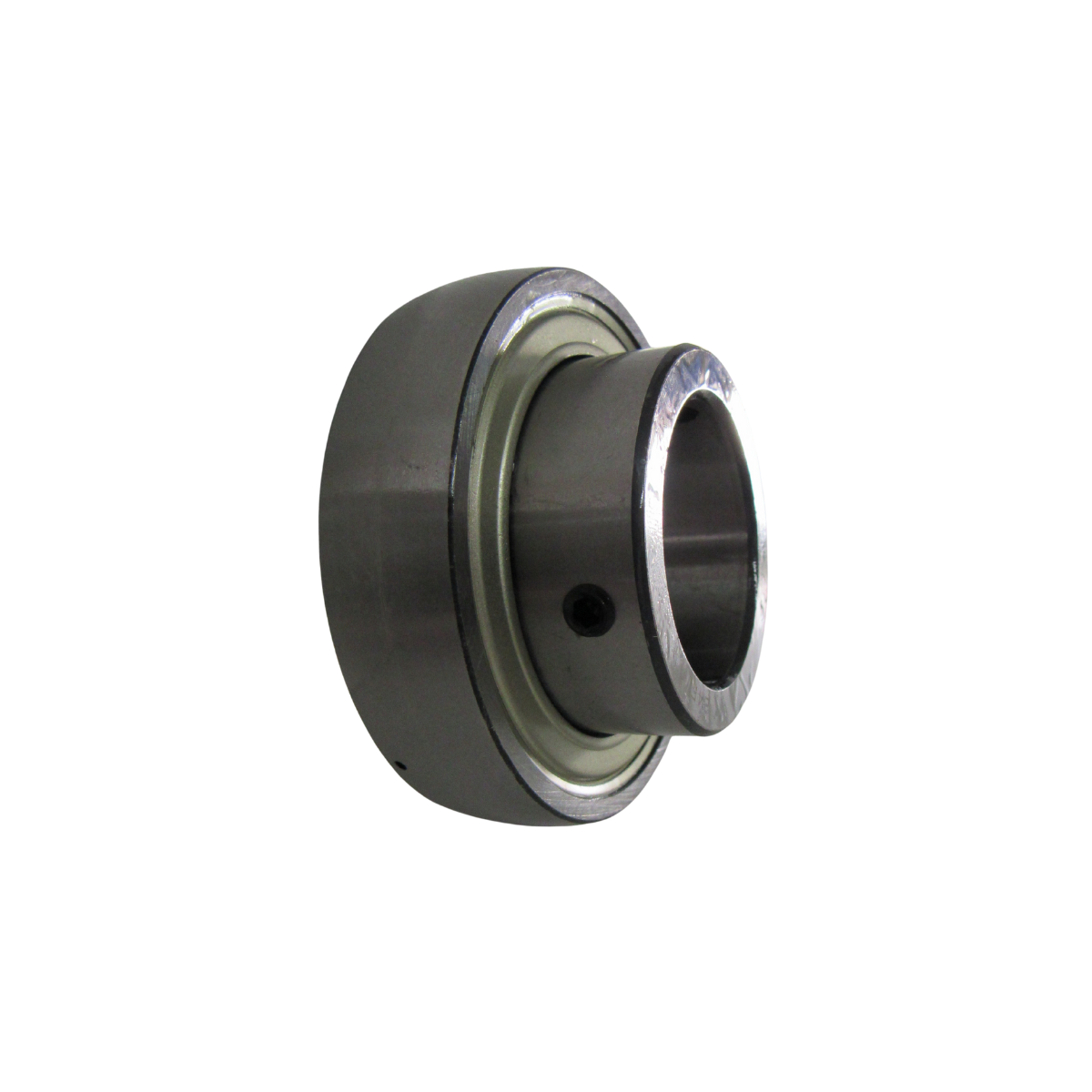

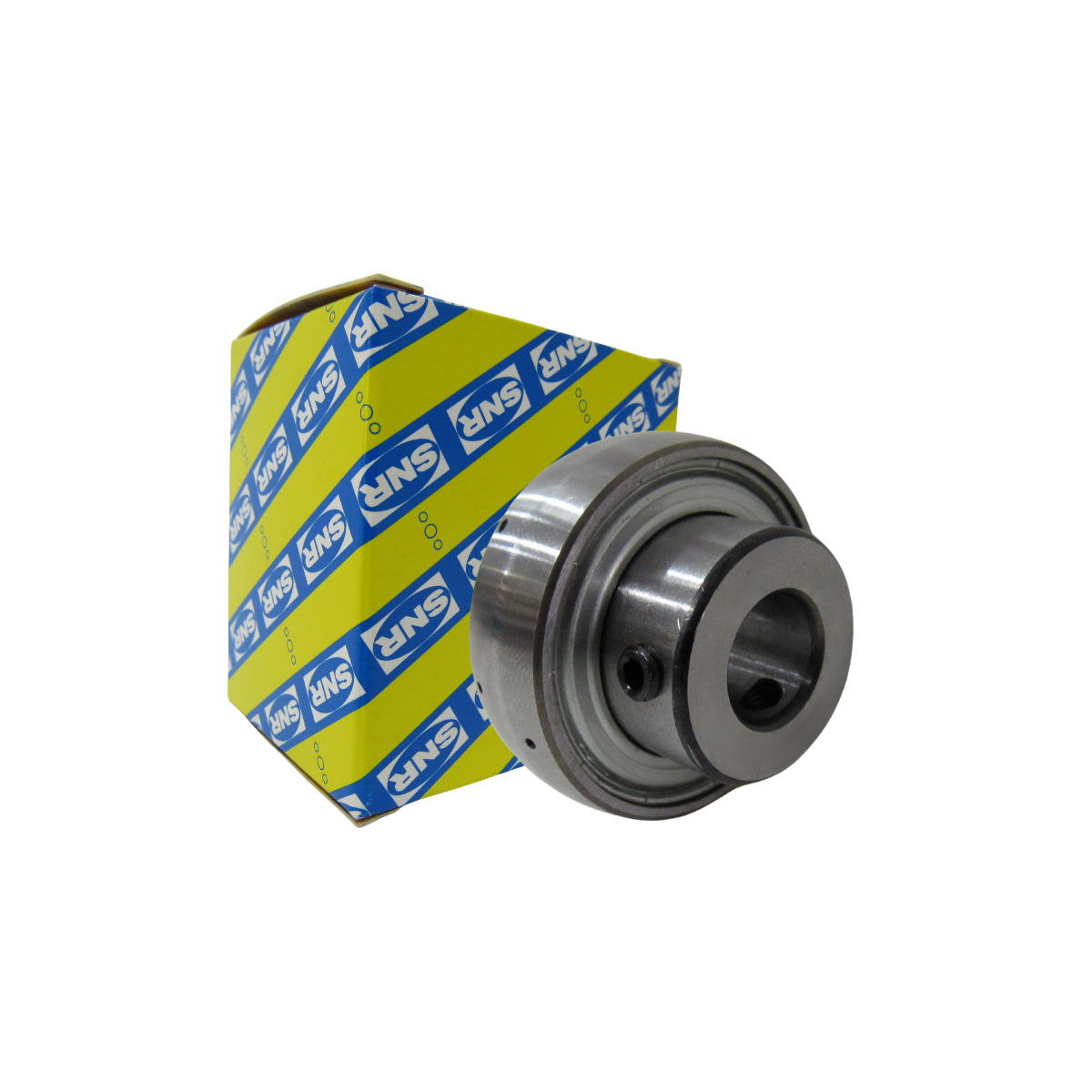

US20618G2 SNR ROLAMENTO FIXO ESFERAS 28,58X62X30 =GAY102NPPB=SB2061.1/8
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Diâmetro externo esférico fixado por conector para conjunto de parafuso junta de vedação de base simples.

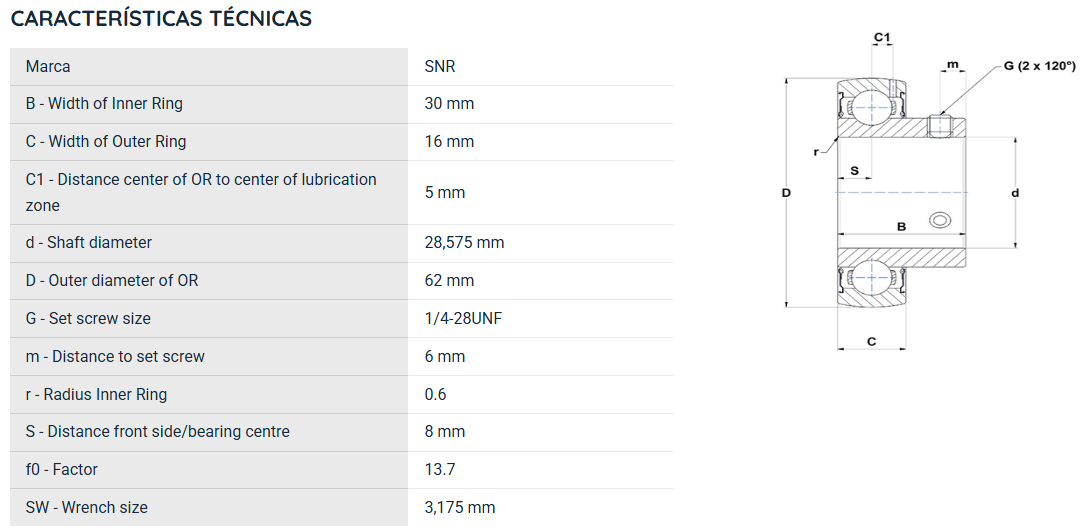

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 30 mm
C - Width of Outer Ring = 16 mm
C1 - Distance center of OR to center of lubrication zone = 5 mm
d - Shaft diameter = 28,575 mm
D - Outer diameter of OR = 62 mm
G - Set screw size = 1/4-28UNF
m - Distance to set screw = 6 mm
r - Radius Inner Ring = 0.6
S - Distance front side/bearing centre = 8 mm
f0 - Factor = 13.7
SW - Wrench size = 3,175 mm
C - Dynamic load rating = 19,5 kN
C0 - Static load rating = 11,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
