AXK100135 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1120 100X135X4MM
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.

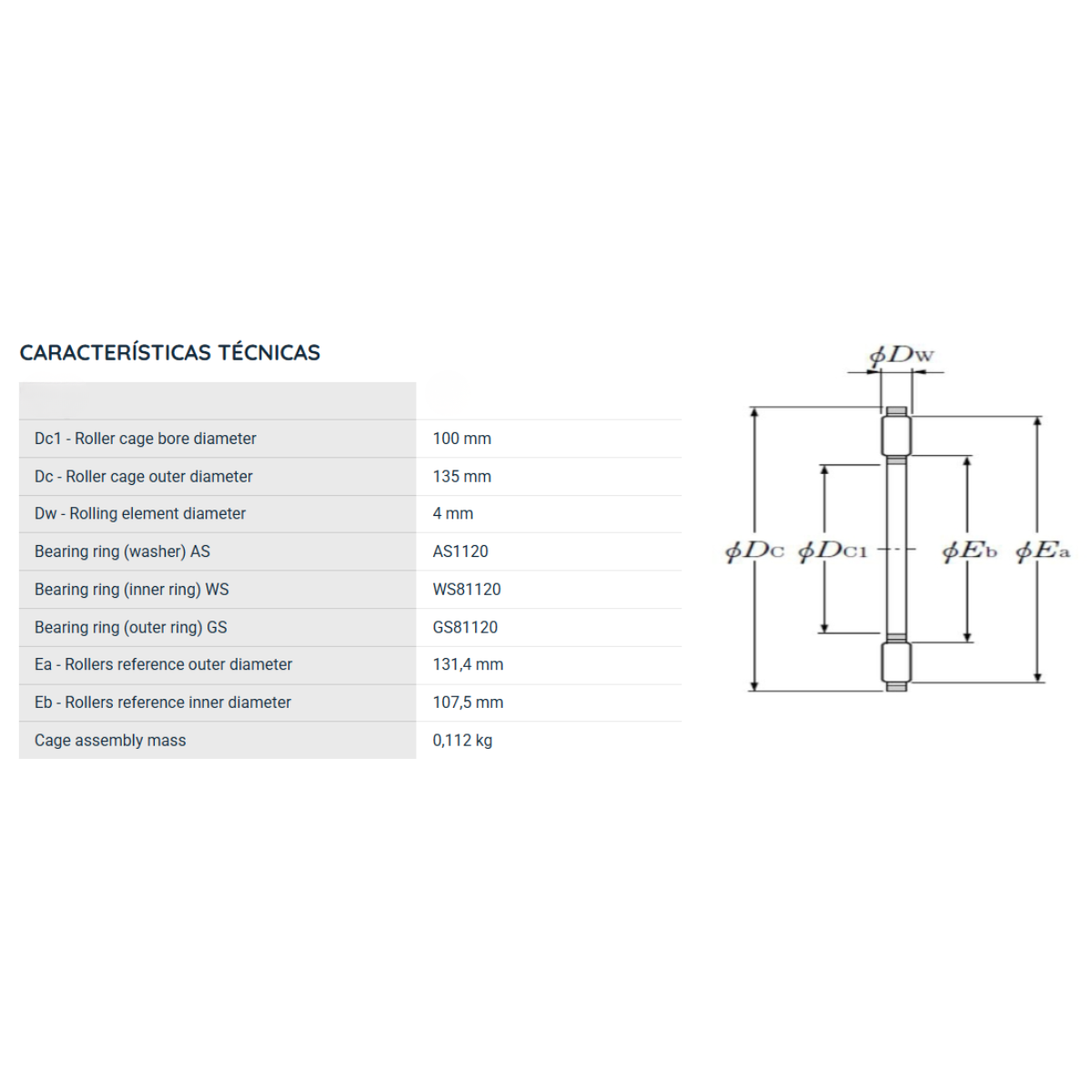

CARACTERÍSTICAS TÉCNICAS
Dc1 - Roller cage bore diameter = 100 mm
Dc - Roller cage outer diameter = 135 mm
Dw - Rolling element diameter = 4 mm
Bearing ring (washer) AS = AS1120
Bearing ring (inner ring) WS = WS81120
Bearing ring (outer ring) GS = GS81120
Ea - Rollers reference outer diameter = 131,4 mm
Eb - Rollers reference inner diameter = 107,5 mm
Ca - Dynamic axial load rating = 90 kN
C0a - Static axial load rating = 550 kN
Cua - Limit axial load rating = 64 kN
N lim - Grease lubrication limit speed = 500 tr/min
N lim - Oil lubrication limit speed = 2000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
