018830

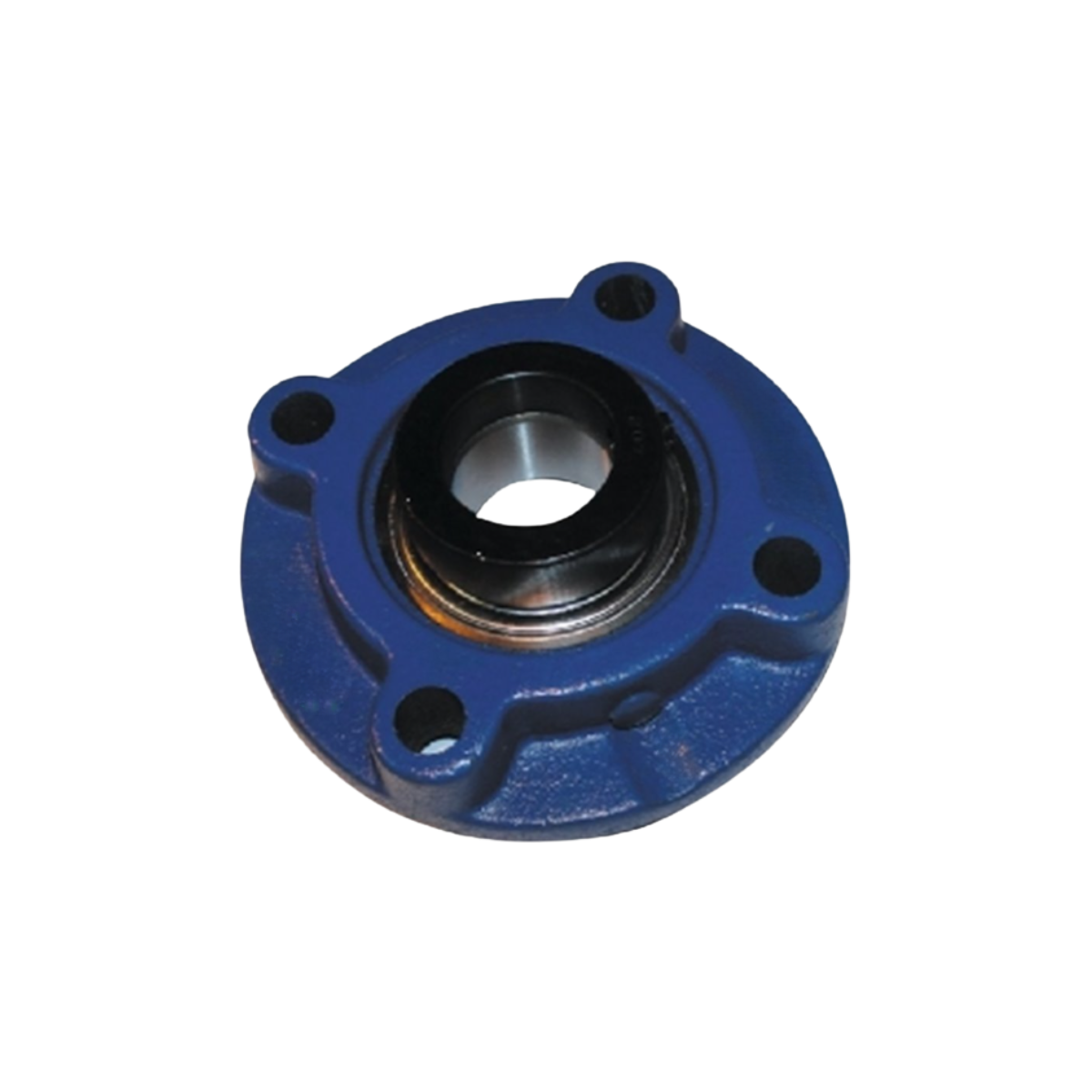

ESFC208 SNR CONJUNTO INDUSTRIAL DE MANCAL E ROLAMENTO
Estoques
| Cidade | Quantidade |
|---|---|
| São Paulo | 40 |
| Total | 40 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

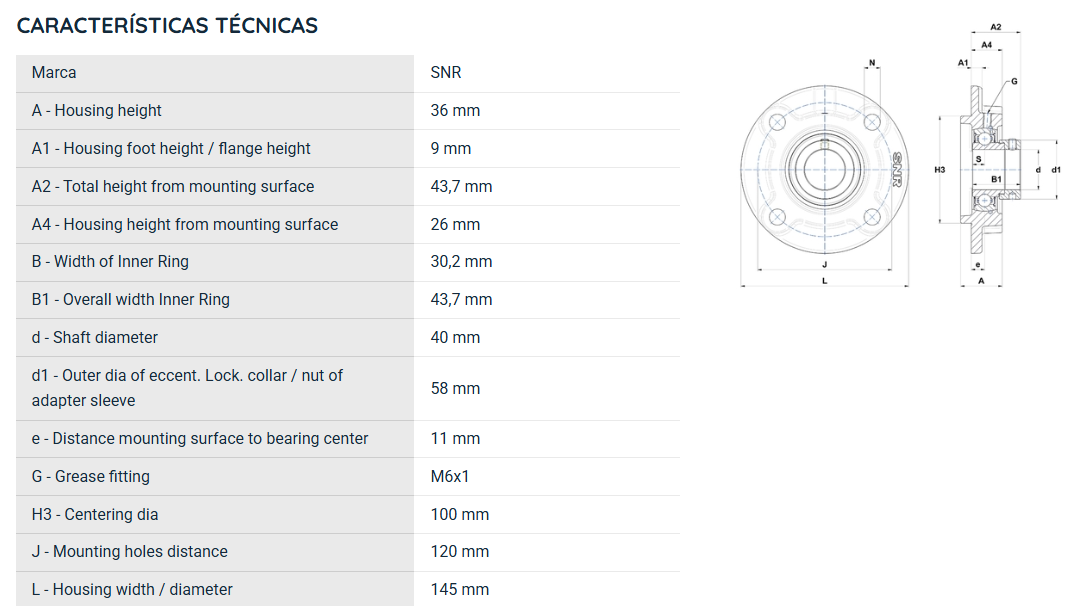

CARACTERÍSTICAS TÉCNICAS
A - Housing height = 36 mm
A1 - Housing foot height / flange height = 9 mm
A2 - Total height from mounting surface = 43,7 mm
A4 - Housing height from mounting surface = 26 mm
B - Width of Inner Ring = 30,2 mm
B1 - Overall width Inner Ring = 43,7 mm
d - Shaft diameter = 40 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 58 mm
e - Distance mounting surface to bearing center = 11 mm
G - Grease fitting = M6x1
H3 - Centering dia = 100 mm
J - Mounting holes distance = 120 mm
L - Housing width / diameter = 145 mm
N - Mounting hole dimension = 14 mm
S - Distance front side/bearing centre = 11 mm
C - Dynamic load rating = 29,6 kN
C0 - Static load rating = 18,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
A - Housing height = 36 mm
A1 - Housing foot height / flange height = 9 mm
A2 - Total height from mounting surface = 43,7 mm
A4 - Housing height from mounting surface = 26 mm
B - Width of Inner Ring = 30,2 mm
B1 - Overall width Inner Ring = 43,7 mm
d - Shaft diameter = 40 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve = 58 mm
e - Distance mounting surface to bearing center = 11 mm
G - Grease fitting = M6x1
H3 - Centering dia = 100 mm
J - Mounting holes distance = 120 mm
L - Housing width / diameter = 145 mm
N - Mounting hole dimension = 14 mm
S - Distance front side/bearing centre = 11 mm
C - Dynamic load rating = 29,6 kN
C0 - Static load rating = 18,2 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
