017050
AXK4060 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1108 40X60X3
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
CARACTERÍSTICAS TÉCNICAS

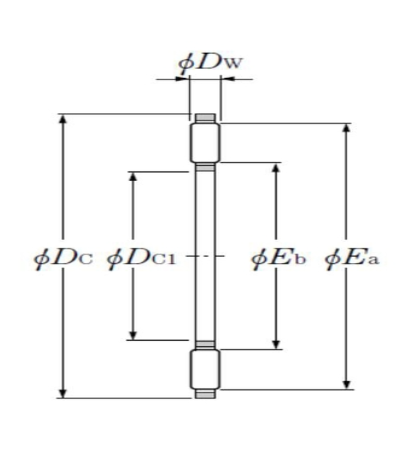

Dc1 - Roller cage bore diameter = 40 mm
Dc - Roller cage outer diameter = 60 mm
Dw - Rolling element diameter = 3 mm
Bearing ring (washer) AS = AS1108
Bearing ring (inner ring) WS = WS81108
Bearing ring (outer ring) GS = GS81108
Ea - Rollers reference outer diameter = 56,2 mm
Eb - Rollers reference inner diameter = 44,2 mm
Ca - Dynamic axial load rating = 27,4 kN
C0a - Static axial load rating = 110 kN
Cua - Limit axial load rating = 13,5 kN
N lim - Grease lubrication limit speed = 1200 tr/min
N lim - Oil lubrication limit speed = 4700 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 40 mm
Dc - Roller cage outer diameter = 60 mm
Dw - Rolling element diameter = 3 mm
Bearing ring (washer) AS = AS1108
Bearing ring (inner ring) WS = WS81108
Bearing ring (outer ring) GS = GS81108
Ea - Rollers reference outer diameter = 56,2 mm
Eb - Rollers reference inner diameter = 44,2 mm
Ca - Dynamic axial load rating = 27,4 kN
C0a - Static axial load rating = 110 kN
Cua - Limit axial load rating = 13,5 kN
N lim - Grease lubrication limit speed = 1200 tr/min
N lim - Oil lubrication limit speed = 4700 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
