014969
AXK140180 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1128 140X180X5
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 2 |
| Caxias do Sul | 2 |
| Total | 4 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.
CARACTERÍSTICAS TÉCNICAS

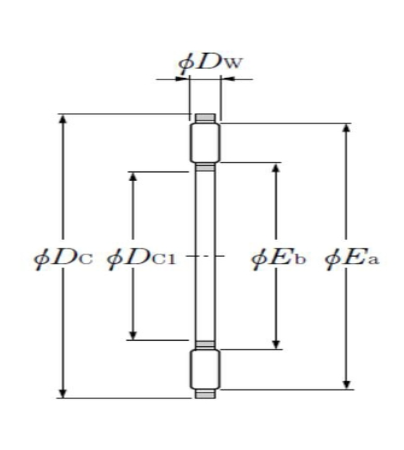

Dc1 - Roller cage bore diameter = 140 mm
Dc - Roller cage outer diameter = 180 mm
Dw - Rolling element diameter = 5 mm
Bearing ring (washer) AS = AS1128
Bearing ring (inner ring) W = WS81128
Bearing ring (outer ring) GS = GS81128
Ea - Rollers reference outer diameter = 174 mm
Eb - Rollers reference inner diameter = 146 mm
Ca - Dynamic axial load rating = 145 kN
C0a - Static axial load rating = 960 kN
Cua - Limit axial load rating = 102 kN
N lim - Grease lubrication limit speed = 380 tr/min
N lim - Oil lubrication limit speed = 1500 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
