011431

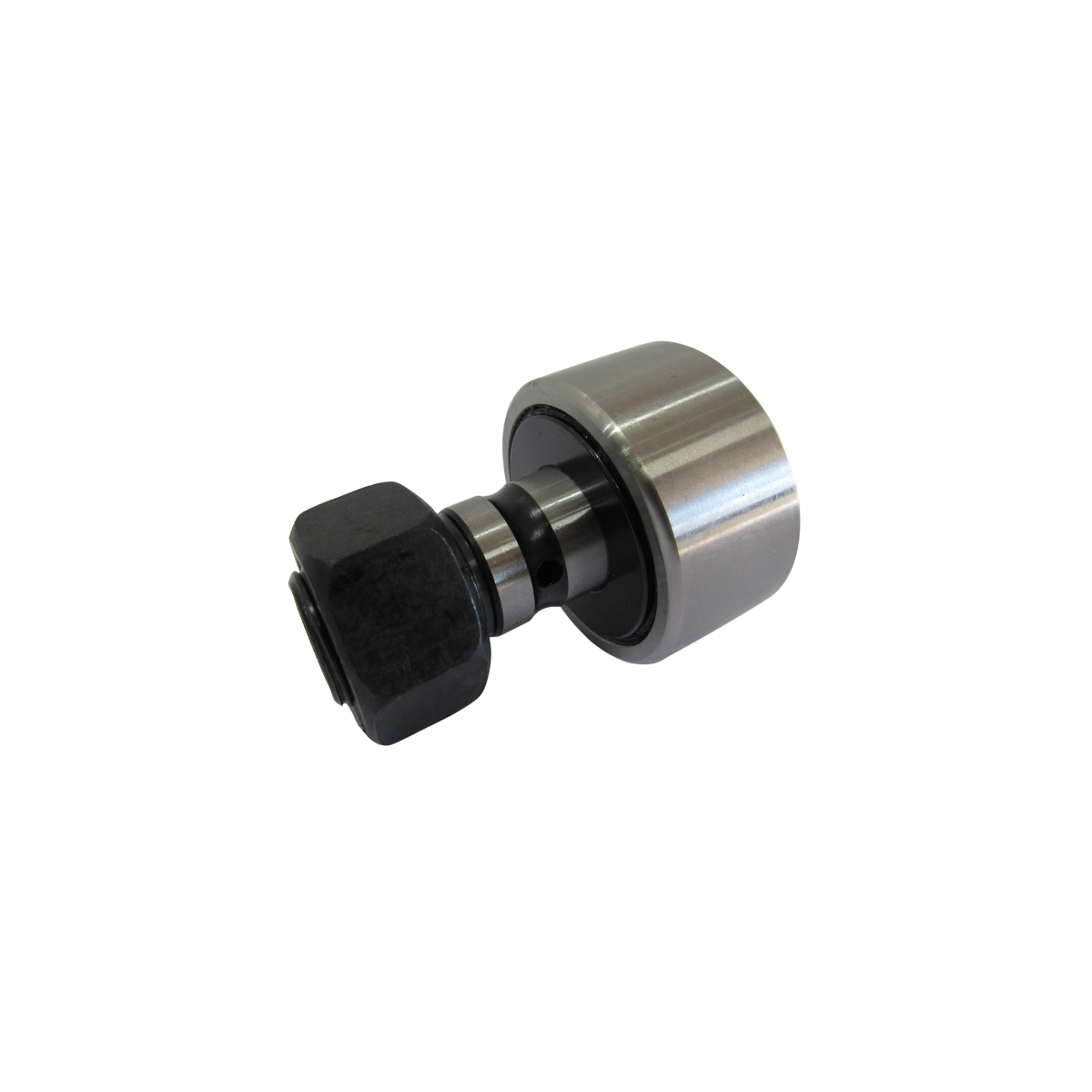

KRV30LL NKR ROLAMENTO INDUSTRIAL ROLO DE COMANDO-LEVA
Estoques
| Cidade | Quantidade |
|---|---|
| Caxias do Sul | 2 |
| Total | 2 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

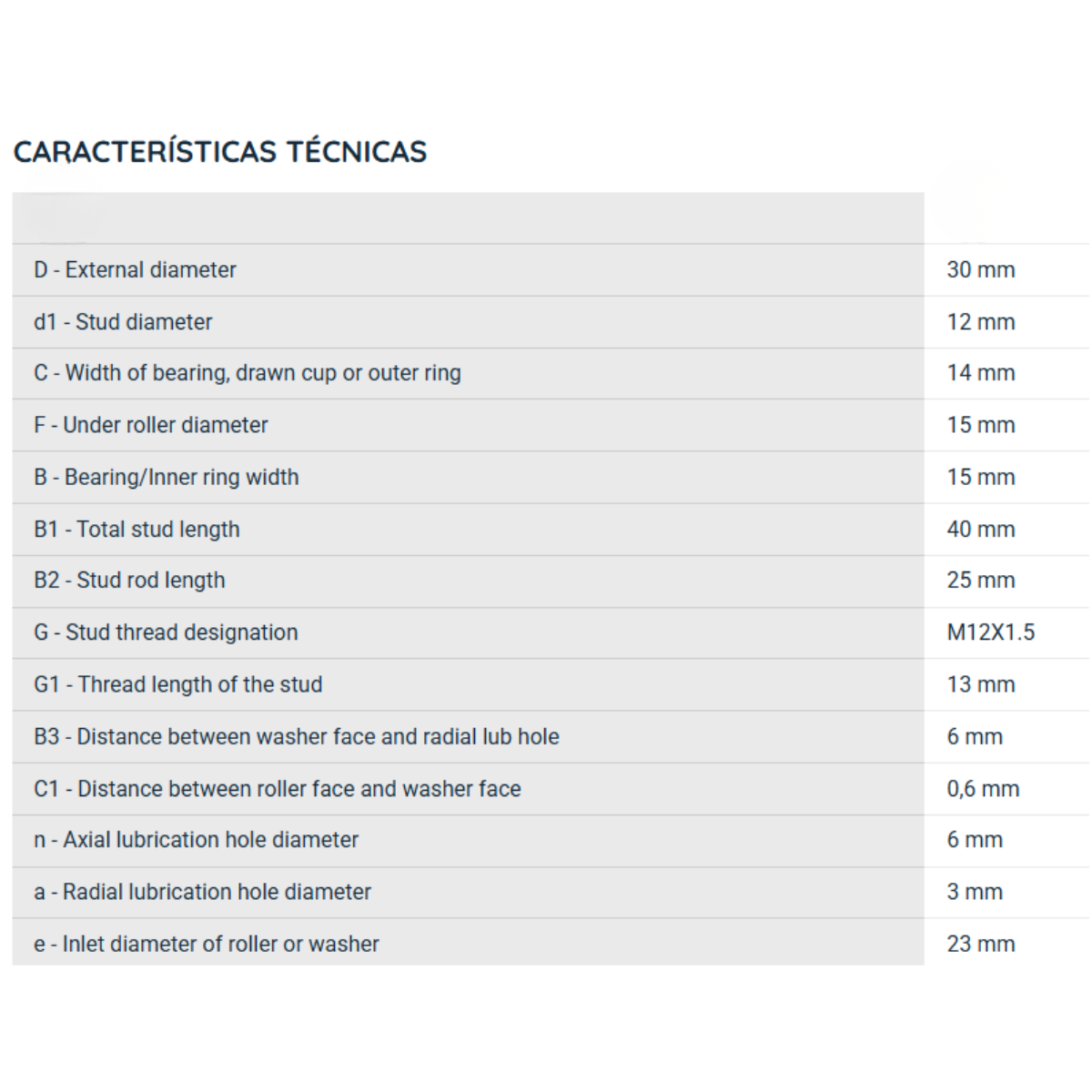

CARACTERÍSTICAS TÉCNICAS

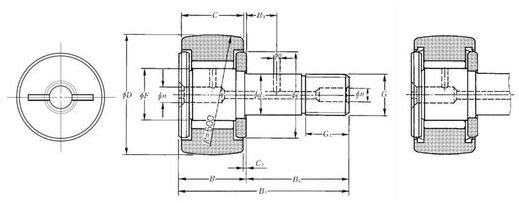

D - External diameter = 30 mm
d1 - Stud diameter = 12 mm
C - Width of bearing, drawn cup or outer ring = 14 mm
F - Under roller diameter = 15 mm
B - Bearing/Inner ring width = 15 mm
B1 - Total stud length = 40 mm
B2 - Stud rod length = 25 mm
G - Stud thread designation = M12X1.5
G1 - Thread length of the stud = 13 mm
B3 - Distance between washer face and radial lub hole = 6 mm
C1 - Distance between roller face and washer face = 0,6 mm
n - Axial lubrication hole diameter = 6 mm
a - Radial lubrication hole diameter = 3 mm
e - Inlet diameter of roller or washer = 23 mm

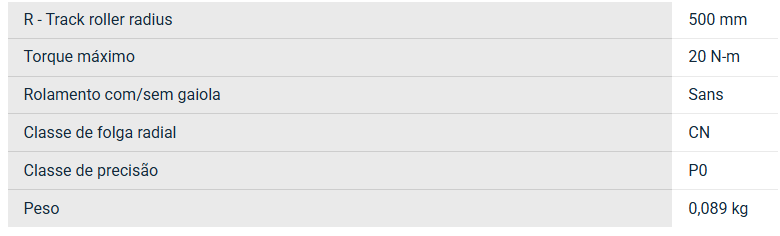

R - Track roller radius = 500 mm
Torque máximo = 20 N-m
Rolamento com/sem gaiola = Sans
Classe de folga radial = CN
Classe de precisão P0
Cr - Dynamic load rating = 12 kN
C0r - Static load rating = 20,3 kN
Track load capacity spherical outer ring = 2,62 kN
N lim - Grease lubrication limit speed = 6500 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 100 °C
