011198
AXK2542 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1105 25X42X2
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.

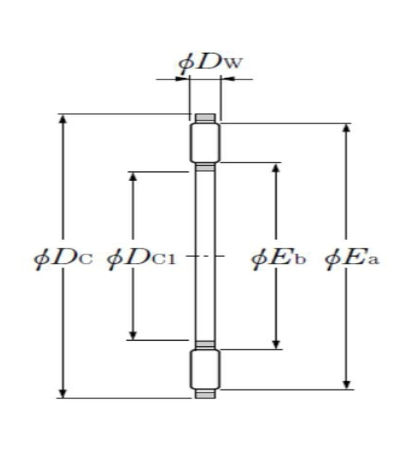

CARACTERÍSTICAS TÉCNICAS
Dc1 - Roller cage bore diameter = 25 mm
Dc - Roller cage outer diameter = 42 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1105
Bearing ring (inner ring) WS = WS81105
Bearing ring (outer ring) GS = GS81105
Ea - Rollers reference outer diameter = 39,4 mm
Eb - Rollers reference inner diameter = 29,5 mm
Ca - Dynamic axial load rating = 14,6 kN
C0a - Static axial load rating = 58 kN
Cua - Limit axial load rating = 7,05 kN
N lim - Grease lubrication limit speed = 1800 tr/min
N lim - Oil lubrication limit speed = 7000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 25 mm
Dc - Roller cage outer diameter = 42 mm
Dw - Rolling element diameter = 2 mm
Bearing ring (washer) AS = AS1105
Bearing ring (inner ring) WS = WS81105
Bearing ring (outer ring) GS = GS81105
Ea - Rollers reference outer diameter = 39,4 mm
Eb - Rollers reference inner diameter = 29,5 mm
Ca - Dynamic axial load rating = 14,6 kN
C0a - Static axial load rating = 58 kN
Cua - Limit axial load rating = 7,05 kN
N lim - Grease lubrication limit speed = 1800 tr/min
N lim - Oil lubrication limit speed = 7000 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
