010246
AXK4565 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1109 45X65X3
Estoques
| Cidade | Quantidade |
|---|---|
| Bento Gonçalves | 1 |
| Total | 1 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
Faça login para ver o preço e inserir esse produto no carrinho.

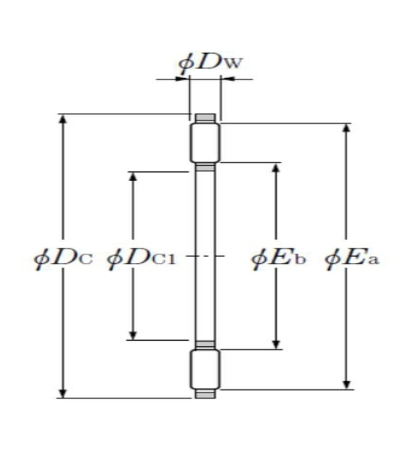

CARACTERÍSTICAS TÉCNICAS
Dc1 - Roller cage bore diameter = 45 mm
Dc - Roller cage outer diameter = 65 mm
Dw - Rolling element diameter = 3 mm
Bearing ring (washer) AS = AS1109
Bearing ring (inner ring) WS = WS81109
Bearing ring (outer ring) GS = GS81109
Ea - Rollers reference outer diameter = 62,4 mm
Eb - Rollers reference inner diameter = 50,5 mm
Ca - Dynamic axial load rating = 29,8 kN
C0a - Static axial load rating = 128 kN
Cua - Limit axial load rating = 15,6 kN
N lim - Grease lubrication limit speed = 1100 tr/min
N lim - Oil lubrication limit speed = 4300 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
