004584

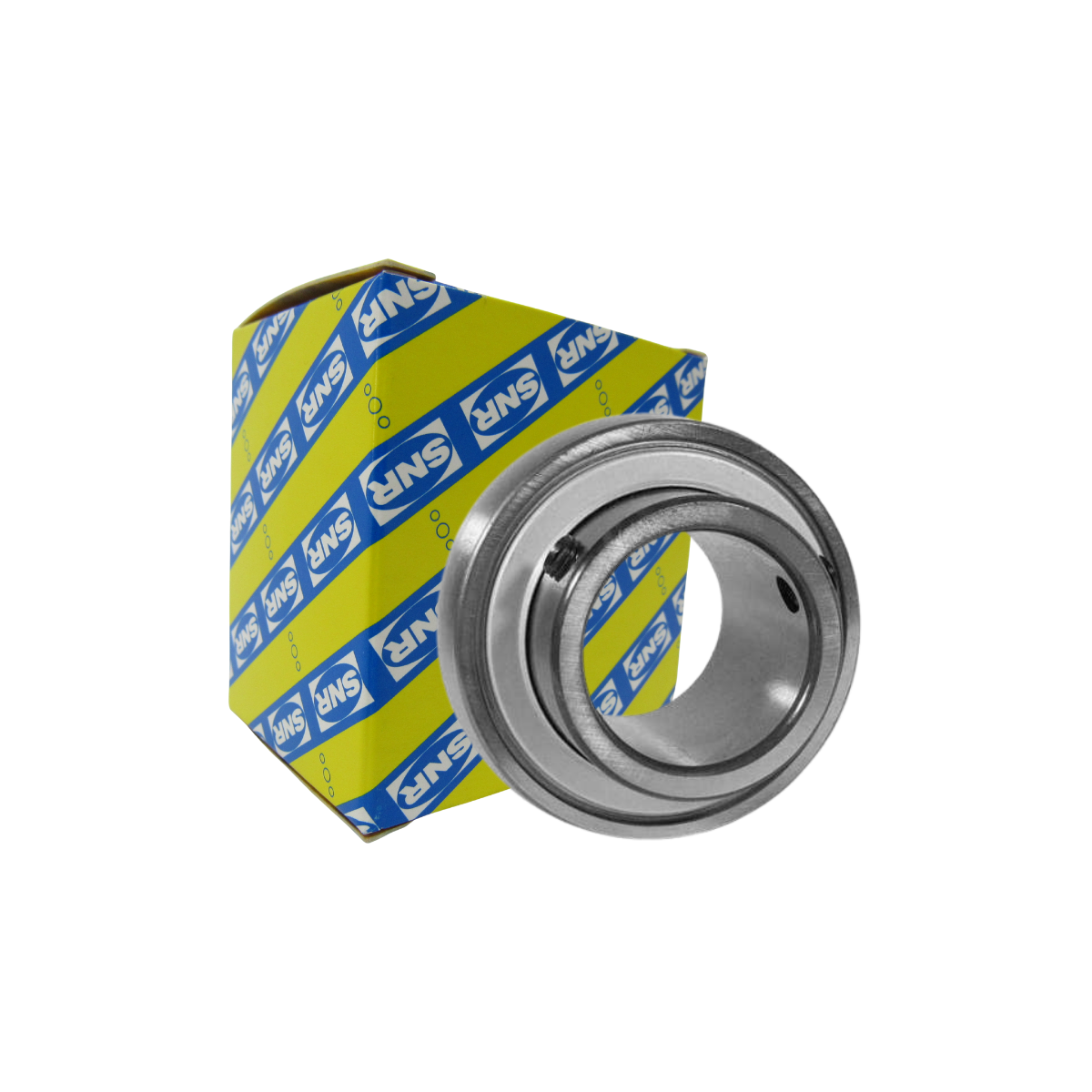

SUC20412 SNR ROLAMENTO FIXO ESFERAS INOX 19,05X47X31
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.

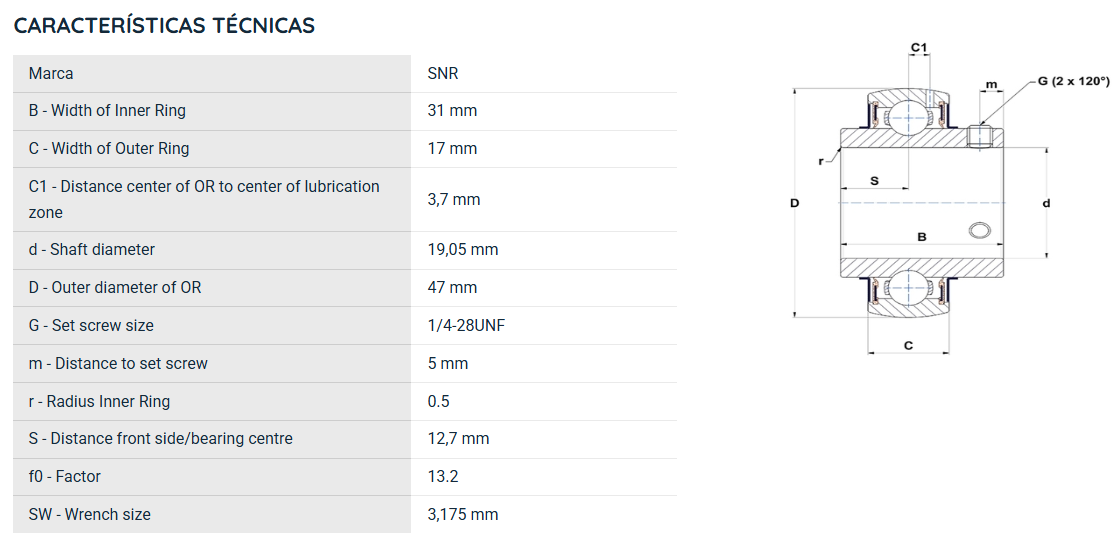

CARACTERÍSTICAS TÉCNICAS
B - Width of Inner Ring = 31 mm
C - Width of Outer Ring = 17 mm
C1 - Distance center of OR to center of lubrication zone = 3,7 mm
d - Shaft diameter = 19,05 mm
D - Outer diameter of OR = 47 mm
G - Set screw size = 1/4-28UNF
m - Distance to set screw = 5 mm
r - Radius Inner Ring = 0.5
S - Distance front side/bearing centre = 12,7 mm
f0 - Factor = 13.2
SW - Wrench size = 3,175 mm
C - Dynamic load rating = 12,8 kN
C0 - Static load rating = 6,6 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
B - Width of Inner Ring = 31 mm
C - Width of Outer Ring = 17 mm
C1 - Distance center of OR to center of lubrication zone = 3,7 mm
d - Shaft diameter = 19,05 mm
D - Outer diameter of OR = 47 mm
G - Set screw size = 1/4-28UNF
m - Distance to set screw = 5 mm
r - Radius Inner Ring = 0.5
S - Distance front side/bearing centre = 12,7 mm
f0 - Factor = 13.2
SW - Wrench size = 3,175 mm
C - Dynamic load rating = 12,8 kN
C0 - Static load rating = 6,6 kN
Operating temperature min. = -20 °C
Operating temperature max. = 100 °C
