001709
AXK75100 NKR ROLAMENTO AXIAL DE AGULHAS = AXK1115 75X100X4MM
Estoques
| Cidade | Quantidade |
|---|---|
| Total | 0 |
Clique aqui
e faça seu cadastro, para ver o preço e realizar a compras desde produto.
CARACTERÍSTICAS TÉCNICAS

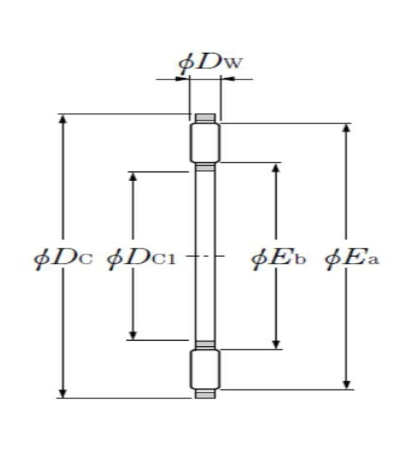

Dc1 - Roller cage bore diameter = 75 mm
Dc - Roller cage outer diameter = 100 mm
Dw - Rolling element diameter = 4 mm
Bearing ring (washer) AS = AS1115
Bearing ring (inner ring) WS = WS81115
Bearing ring (outer ring) GS = GS81115
Ea - Rollers reference outer diameter = 96,4 mm
Eb - Rollers reference inner diameter = 80,5 mm
Ca - Dynamic axial load rating = 55 kN
C0a - Static axial load rating = 266 kN
Cua - Limit axial load rating = 32,5 kN
N lim - Grease lubrication limit speed = 700 tr/min
N lim - Oil lubrication limit speed = 2700 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
Dc1 - Roller cage bore diameter = 75 mm
Dc - Roller cage outer diameter = 100 mm
Dw - Rolling element diameter = 4 mm
Bearing ring (washer) AS = AS1115
Bearing ring (inner ring) WS = WS81115
Bearing ring (outer ring) GS = GS81115
Ea - Rollers reference outer diameter = 96,4 mm
Eb - Rollers reference inner diameter = 80,5 mm
Ca - Dynamic axial load rating = 55 kN
C0a - Static axial load rating = 266 kN
Cua - Limit axial load rating = 32,5 kN
N lim - Grease lubrication limit speed = 700 tr/min
N lim - Oil lubrication limit speed = 2700 tr/min
Tmin - Temperatura mín de operação = -20 °C
Tmax - Temperatura máx de operação = 120 °C
